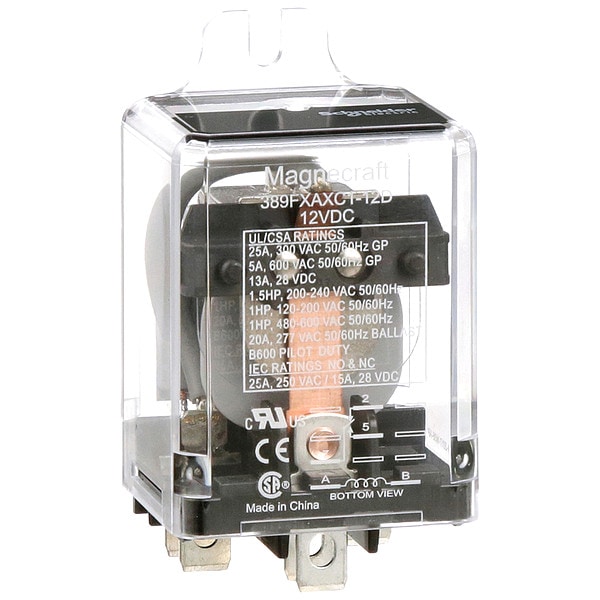

Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect

  • Mfr # 389FXAXC1-12D
  • Zoro # G1527976
product price:
$
27.69
/ea

Key Features

Mounting Style
Flange Mount
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
389FXAXC1-12D
Zoro #
G1527976
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.90"H, 1.53"W, 1.40"D
Overall Height - Relay
2.9 in
Body Width
0.83 in
Body Height
1.57 in
Body Depth
1.07 in
Overall Depth
2.9 in
Fits Chest Size
1hp @ 480-600V, Flag Indicator

Details

Item
Enclosed Power Relay
Mounting Style
Flange Mount
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
Current Rating
25 A
Contact Form
SPDT
Contact Rating (AC)
20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V
Contact Rating (DC)
13 A @ 28V, 15 A @ 28V
Power Consumption - Relay
3.5 W
Contact Amp Rating (Resistive)
25A @ 300VAC, 13A @ 28VDC
Hz
50/60
Features
1hp @ 480-600V, Flag Indicator
Standards
CE Certified, CSA Certified, cURus
Contact Material
Silver Alloy
Number of Poles
1
Coil Rating
3.5VA, 1.4W
Maximum Switching Voltage
600V AC
Maximum Operating Temperature
131 Degrees F
Frequency
50/60 Hz
Weight
2.96 oz
Series
389F Power Series
Motor Rated
Yes
Coil Resistance
100 ohm
Power Consumption
1.3 W, 2 VA
Horsepower @ 240V AC
1 1/2 hp
Minimum Operating Temperature
-22 Degrees F
Status Indicator
Mechanical Flag
Dielectric Strength
1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Electrical Operating Durability
100,000
Horsepower @ 120V AC
1 hp
Operating Current
13 A at 28V DC (Resistive Load), 15 A at 28V DC-1 (NO/NC), 20 A at 277V AC (Ballast), 22 A at 120V AC (Full Load), 25 A at 250V AC-1 (NO/NC), 25 A at 300V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Mechanical Operating Durability
5,000,000
Minimum Switching Current
100 mA
Input Voltage
12V DC
Response Time
20 msec
Voltage Range
0.8...1.1 Uc DC
Product Certifications
cURus; CSA; CE
Power consumption in W
1.3 W DC
Contact Composition
1 NC + 1 NO
Connections Terminals
Quick
Power consumption in VA
2 VA AC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Motor Power HP
1.5 hp 200/240 V AC 50/60 Hz; 1 hp 120...200V AC 50/60 Hz; 1 hp 600 V AC 50/60 Hz
Ambient Air Temperature for Storage
-22 to 185°F (-30 to 85°C)
Ambient Air Temperature for Operation
-22 to 131°F (-30 to 55°C)
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.07 in, Body Height 1.57 in, Body Width 0.83 in, Coil Resistance 100 ohm
