  6. Power Supply, 120/375V DC; 85/264V AC, 24V DC, 75 W, 3.13 A, DIN Rail

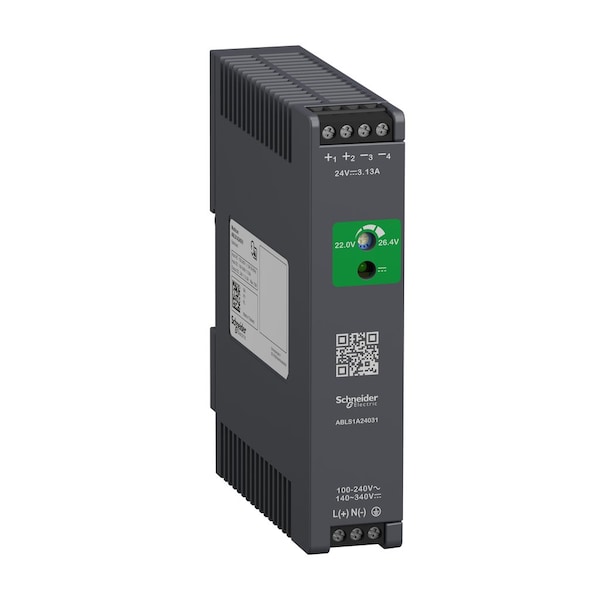

Schneider Electric Power Supply, 120/375V DC; 85/264V AC, 24V DC, 75 W, 3.13 A, DIN Rail ABLS1A24031 - main

Power Supply, 120/375V DC; 85/264V AC, 24V DC, 75 W, 3.13 A, DIN Rail

  • Mfr # ABLS1A24031

  • Zoro # G403458085

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/375V DC; 85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
75 W
Current - Output
3.13 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ABLS1A24031
Zoro #
G403458085
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
1.06 in
Overall Width
4.87 in
Overall Depth
4.02 in
Width
1.06 in
Height
4.87 in
Depth
4.02 in
Wire Size - Minimum
20 AWG
Wire Size - Maximum
14 AWG

Details

Item
Power Supply
Input Voltage
120/375V DC; 85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
75 W
Current - Output
3.13 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Series
ABL
IP Rating
IP20
Phase - Electrical
Single
Output Voltage
24V DC
Hold Up Time
Greater Than 20 msec @ 115 V AC, Greater Than 40 msec @ 230 V AC
Load Regulation
Less Than 0.5%
Power Rating
75W
Status Indicator
Green LED
Standards
CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cUL, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, NEC: Class 2, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1
Connection
Screw
Case Material
Plastic Case
Style
Switching
Protection
Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset
Operating Temp. Range
-10 to 50°C
Line Regulation
Less Than 1%
Hz
50/60 Hz
Features
Approved For Branch Circuits Up To 16 A (IEC) and 20 A (UL) Without Additional Protection Devices
Output Amps
3.13A
Ripple Volts Regulation
Less Than 120mV
Maximum Efficiency @ 230V AC
88 %
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
14 Degrees F
Wire Connection Type
Screw Terminals
Manufacturer Warranty
18 mo
Input Frequency - Nominal
50/60 Hz
Mean Time Between Failures (MTBF)
700,000 hr
Current - Inrush
80 A

Description

DC Power Supply, Input Voltage 100 to 240V AC, 140 to 340V DC, Output Voltage 24V DC, Power Rating 75 W, Output Amps 3.13, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 4.87 in, Width 1.06 in, Depth 4.02 in, Series ABL, Hz 50 to 60 Hz, Phase - Electrical Single, IP Rating IP20, Hold Up Time Greater Than 20 msec @ 115 V AC, Greater Than 40 msec @ 230 V AC, Status Indicator Green LED
