Shop MURRELEKTRONIK

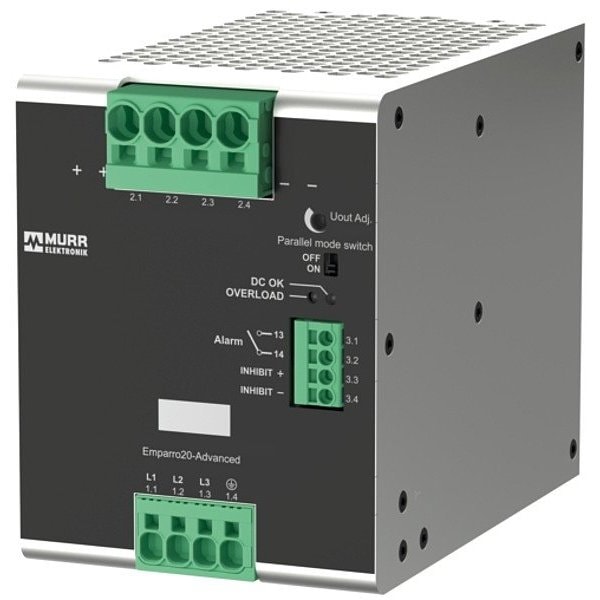

Dc Power Supply

  • Mfr # 9000-17333-1421110

  • Zoro # G522824518

product price:
$
750.99
/ea
Free Shipping & Returns

Key Features

Wire Size - Minimum
24 AWG
Input Frequency - Minimum
47 Hz
Output Noise - Maximum
100 mV
IP Rating
IP20
Hold Up Time - Minimum
20 msec
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9000-17333-1421110
Zoro #
G522824518
UPC #
-
Country of Origin
Malaysia

Dimensions

Wire Size - Minimum
24 AWG
Wire Size - Maximum
8 AWG
Overall Depth
171.9 mm
Overall Width
100 mm
Overall Height
129 mm

Details

Input Frequency - Minimum
47 Hz
Item
DC Power Supply
Output Noise - Maximum
100 mV
IP Rating
IP20
Hold Up Time - Minimum
20 msec
Output Voltage - Nominal
48 V DC
Phase
Three
Operating Temperature - Maximum
70 Degrees C
Wire Connection Type
Spring Clamp Terminals
Standards
CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, REACH, RoHS 25, SEMI F47, UKCA, UL, WEEE
Output Power - Rated
960 W
Mounting
DIN Rail
Start Up Time - Maximum
0 sec
Current - Output
21.3 A
Input Frequency - Nominal
50/60 Hz
Input Voltage
342 to 575V AC, 450.5 to 810V DC
Status Indicator
Green LED
Operating Temperature - Minimum
-25 Degrees C
Housing Material
Aluminum
Special Features
Overload Protection, Overtemperature Protection, Short Circuit Protection
Output Voltage - Minimum
45 V DC
Output Voltage - Maximum
56 V DC
Input Frequency - Maximuim
63 Hz
Current - Inrush
17 A
Series
Emparro20
Power Supply Style
Switching
Mean Time Between Failures (MTBF)
1,700,000 hr

Description

DC Power Supply, Input Voltage 342 to 575V AC, 450.5 to 810V DC, Mounting DIN Rail, Series Emparro20, IP Rating IP20, Status Indicator Green LED, Standards CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, REACH, RoHS 25, SEMI F47, UKCA, UL, WEEE
