0.3 A 48 V DC EN/IEC 60947-5-1 || 3 A 24 V DC UL 508 || 1.5 A 240 V AC EN/IEC 60947-5-1 || 3 A 120 V AC EN/IEC 60947-5-1 || 3 A 240 V AC UL 508 || 3 A 24 V DC CSA C22.2 No 14 || 3 A 240 V AC CSA C22.2 No 14
Level Or Class
5M00G7W
Product Certifications
C-tick || CCC || CSA || UL || GOST
Operating Position
any position without derating
Shock Resistance
10 gn 16 ms) 6000 shocks IEC 60068-2-27
Vibration Resistance
+/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
Product Specific Application
interface to actuators
Number Of Channels
1
Device Short Name
ZBRRA
Switching Capacity In Va
1250 VA
Antenna Gain
0 dBi
Control Circuit Frequency
50 to 60 Hz +/- 10 %
Maximum Power Consumption In W
4 W AC/DC
Maximum Switching Voltage
250 V AC/DC
Communication Port Protocol
Zigbee green power 2.4 GHz IEEE 802.15.4
Rated Short-Duration Power Frequency Withstand Voltage
1.5 kV 50 Hz EN/IEC 60947-5-1
Transmission Frequency
2405 MHz
Pollution Degree
2 IEC 60664-1
Electrical Connection
1 conductor cable 0.14-2.5 mm² - AWG 26 to AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm² - AWG 26 to AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - flexible - with cable end IEC 60947-1
Overvoltage Category
II IEC 60664-1
Maximum Switching Current
5 mA AC/DC
Marking
CE
[Uimp] Rated Impulse Withstand Voltage
4 kV
Tightening Torque
0.5-1 N.m EN/IEC 60947-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate
Output Type
2 relays
Maximum Sensing Distance
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Modulation Technique
O-QPSK
Function Of Module
bi-stable || monostable || stop/start
Response Time
< 30 ms after transmitter clicks
Time Delay Range
0.5 s - 15 to 15 %)
Input Output Isolation
galvanic isolation
Electrical Durability
100000 cycles
Radio Agreement
RSS || SRRC || ANATEL || ARIB T66 || FCC || ICASA
Insulation Resistance
> 500 MOhm 500 V DC NF C 20-030
Mechanical Durability
1000000 cycles
Breaking Capacity
15 W, 750 VA
Status Led
1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
Ambient Air Temperature For Storage
-40-70°C
Housing Material
self-extinguishing plastic
Relative Humidity
90-90 % -20-55°C, without condensation ETSI EN 300 440-1
immunity for industrial environments EN/IEC 61000-6-2 || conducted and radiated emissionsclass B CISPR 22 || electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 to 2000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 3 V/m 80 to 2700 MHz, distance = 20 m) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV power supply wires) IEC 61000-4-4 || 1.2/50µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 || conducted RF disturbances 10 V IEC 61000-4-6 || immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11 || radiated emission ETSI EN 300 440-1 || conducted emission EN 300-489-1 || conducted emission ETSI EN 300 489-3 || radiated emission ETSI EN 300 440-2
Output Contacts
2 C/O
Ip Degree Of Protection
IP20 IEC 60529 casing) || IP20 terminals)
Reset Time
2 ms time delay
Max Power Consumption In W
1 mW
[Ui] Rated Insulation Voltage
250 V IEC 60664-1
Compatible with Series
XB4R, XB5R
Compatible Product Type
Push Buttons, Wireless Push Buttons

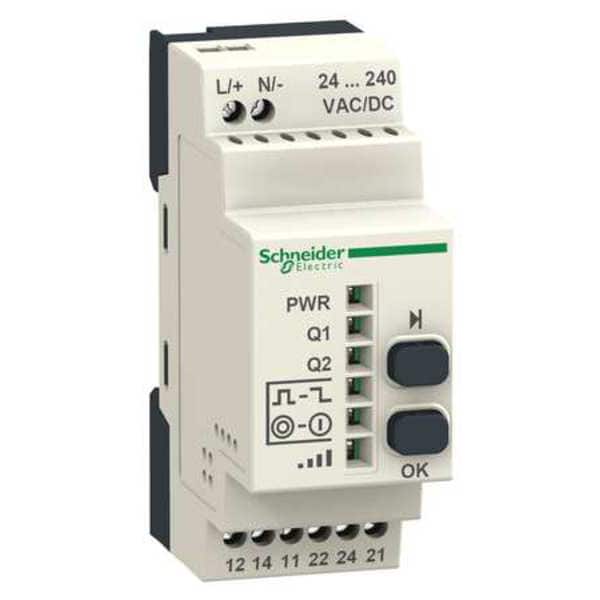

Description
Programmable Receiver, For Use With 22 mm Wireless Push Buttons, Features 24-240 V AC/DC input power
