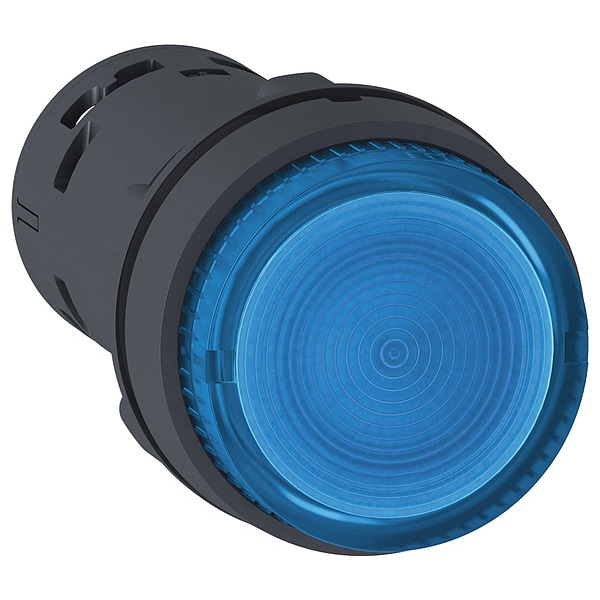

Push-button, 22 mm, Blue

Push-button, 22 mm, Blue

Mfr # XB7NW36B1
Zoro # G3456425

$60.89

Sold in multiples of 10 for $608.90

Key Features

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Panel Cutout Diameter

22 mm

Head Color

Blue

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB7NW36B1

Zoro #

G3456425

UPC #

785901968771

Country of Origin

Indonesia

Dimensions

Panel Cutout Diameter

22 mm

Size

22 mm

Overall Width

1.14 in

Manufacturer Warranty Length

18 mo

Overall Depth

2.26 in

Overall Height

1.14 in

Mounting Diameter

22 mm

Cad Overall Width

29 mm

Cad Overall Height

29 mm

Cad Overall Depth

57.5 mm

Details

Item

Push Button Operator

Push Button Style

Extended

Action

Momentary

Operator Illumination

Illuminated

Head Color

Blue

Head Material

Plastic

Terminal Connection

Screw Clamp

Standards

Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508

Number of Operators

Lamp Voltage

24V AC/DC

Legend/Background Color

No Legend

IP Rating

IP65

Lamp Type

LED

Type of Operator

Extended Button

Color

Blue

Lamp Module Voltage

24V AC/DC

NEMA Rating

Series

XB7

Features

Visually Distinct at a Distance

Hazardous Location Specification

Not Rated

Bezel Material

Plastic

Resistance Properties

Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Operating Temperature - Maximum

158 Degrees F

Operating Temperature - Minimum

-13 Degrees F

Number of Indicator Lights

Product Type

Push Button Operators

Operator Material

Plastic

Lamp Voltage - Maximum

24 V AC/DC

Lamp Module Type

Full Voltage

NEMA Enclosure Rating

12, 3, 4

Device Short Name

XB7

Protective Treatment

Supply Voltage Limits

19.2-30 V DC || 21.6-26.4 V AC

Electrical Shock Protection Class

class II IEC 61140

Shape Of Signaling Unit Head

round

Product Or Component Type

illuminated push-button

Terminals Description Iso NÂ°1

(13-14)NO

Shock Resistance

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

[Ie] Rated Operational Current

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

Mechanical Durability

300000 cycles

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÂ² without cable end EN/IEC 60947-1

Positive Opening

with (only NO)

[Us] Rated Supply Voltage

24 V AC/DC

Fixing Center

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Product Certifications

CCC || GOST

Fixing Mode

fixing nut beneath head 2-2.4 N.m

Electrical Durability

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

Bulb Base

integral LED

Electrical Reliability

Î› <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4

Current Consumption

18 to 27 mA

Contacts Type And Composition

1 NO

Electromagnetic Emission

class B EN 55011

Light Source

LED

Operator Profile

blue projecting, unmarked

Ambient Air Temperature For Operation

-25-70Â°C

Contact Operation

slow-break

Ambient Air Temperature For Storage

-40-70Â°C

[Ui] Rated Insulation Voltage

250 V 3)EN/IEC 60947-1

Tightening Torque

0.8-1.2 N.m EN 60947-1

Device Presentation

monolithic product

Short-Circuit Protection

4 A cartridge fuse gG EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage

4 kV EN/IEC 60947-1

Nema Degree Of Protection

NEMA 12 UL 50 E

Shape Of Screw Head

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Device Mounting

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Signalling Type

steady

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Head Material Plastic, Bezel Material Plastic, Color Blue, NEMA Rating 12, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend, Standards Type 12 UL 50E, EN/IEC 60947-1, CCC, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508, Features Visually Distinct at a Distance
