  13. Push-Button, 22 mm, Green, Red
Shop All Push Button Switches
Schneider Electric

Push-Button, 22 mm, Green, Red

product price: $82.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Momentary/Momentary
  • Size 22 mm
  • Legend/Background Color White/Green, White/Red
  • Head Material Plastic
  • NEMA Rating 13, 4X
See all product information

Product Information

Dimensions

Size 22 mm
Height 50 mm
Width 30 mm
Depth 59 mm
Mounting Diameter 22 mm
Overall Depth 2.32 in
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 22 mm
Overall Width 1.18 in
Overall Height 1.97 in

Details

Action Momentary/Momentary
Legend/Background Color White/Green, White/Red
Head Material Plastic
NEMA Rating 13, 4X
Type of Operator (1) Flush Button, (1) Projecting
Color Green, Red
Legend I, O
Number of Operators 2
Item Multihead Operator
Bezel Material Plastic
Features Visually Distinct at a Distance, Snap-Fit Assembly
Series XB5
Includes 10 A Cartridge Fuse
Standards EN 60947-1, Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Terminal Connection Screw Clamp
Basic Material Plastic
IP Rating IP66
Product Type Multihead Operators
Ik Degree Of Protection IK03 IEC 50102
Contact Operation slow-break
Terminals Description Iso N°1 (13-14)NO || (21-22)NC
Colour Of Marking white marking when green, red or black caps || black marking when white caps
Ambient Air Temperature For Operation -25-70°C
Tightening Torque 0.8-1.2 N.m EN 60947-1
Fixing Collar Material plastic
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K
Contacts Material silver alloy (Ag/Ni)
Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Ambient Air Temperature For Storage -40-70°C
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Positive Opening with EN/IEC 60947-5-1 appendix K
Electrical Durability 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Device Presentation complete product
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Product Or Component Type double-headed push-button
Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Head Type standard
Contacts Usage standard contacts
Contacts Type And Composition 1 NO + 1 NC
Product Certifications UL Listed || LROS (Lloyds register of shipping) || GL || DNV || BV || CSA
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Protective Treatment TH
Nema Degree Of Protection NEMA 13 || NEMA 4X
Mechanical Durability 1000000 cycles
Shape Of Signaling Unit Head rectangular
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile red projecting, O white) || black flush, I white), 1 flush - 1 projecting push-buttons
Electrical Reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Overvoltage Category class II IEC 60536
Operators Description black ''I'' - red ''O''
Device Short Name XB5
Terminals Description Iso N°1 (13-14)NO || (21-22)NC
Operating Temperature - Minimum -13 Degrees F
Operator Illumination Non-Illuminated
Operating Temperature - Maximum 158 Degrees F
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Legend Color White
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Head Color Green, Red
Hazardous Location Specification Not Rated
Number of Indicator Lights 0
Operator Material Plastic
Push Button Style Flush
Legend Background Color Green/Red

Description

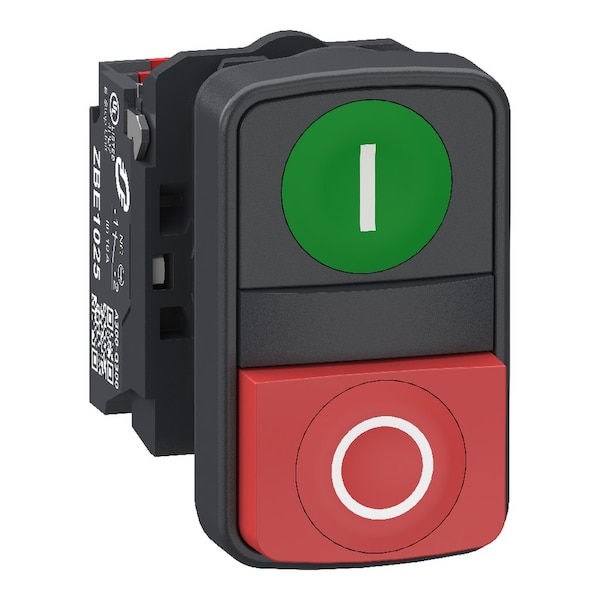

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Flush Button, (1) Projecting, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, Red, NEMA Rating 13, 4X, IP Rating IP66, Legend I, O, Legend/Background Color White/Green, White/Red
