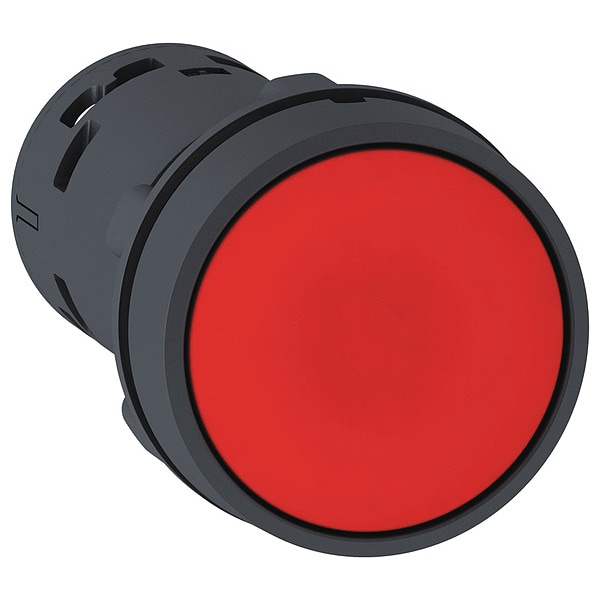

Push-Button, 22 mm, Red

Push-Button, 22 mm, Red

Mfr # XB7NA45
Zoro # G3458498

$23.75

Key Features

Push Button Style

Flush

Action

Momentary

Operator Illumination

Non-Illuminated

Panel Cutout Diameter

22 mm

Head Color

Red

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB7NA45

Zoro #

G3458498

UPC #

785901849131

Country of Origin

Indonesia

Dimensions

Panel Cutout Diameter

22 mm

Size

22 mm

Overall Width

1.14 in

Overall Height

1.14 in

Manufacturer Warranty Length

18 mo

Overall Depth

2.03 in

Mounting Diameter

22 mm

Cad Overall Width

29 mm

Cad Overall Height

29 mm

Cad Overall Depth

51.5 mm

Details

Item

Push Button Operator

Push Button Style

Flush

Action

Momentary

Operator Illumination

Non-Illuminated

Head Color

Red

Head Material

Plastic

Terminal Connection

Screw Clamp

Standards

Type 12 UL 50E, EN/IEC 60947-1, Type 3 UL 50E, CCC, Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508

IP Rating

IP65

NEMA Rating

12, 3

Color

Red

Series

XB7

Includes

4A Cartridge Fuse

Basic Material

Plastic

Features

Visually Distinct at a Distance

Number of Operators

Legend/Background Color

No Legend

Type of Operator

Flush Button

Bezel Material

Plastic

Product Type

Push Button Operators

Resistance Properties

Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

NEMA Enclosure Rating

12, 3, 4

Operating Temperature - Minimum

-13 Degrees F

Hazardous Location Specification

Not Rated

Number of Indicator Lights

Operator Material

Plastic

Operating Temperature - Maximum

158 Degrees F

Positive Opening

with NC contact EN/IEC 60947-5-1 appendix K

Ip Degree Of Protection

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

Electrical Reliability

Î› <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Tightening Torque

0.8-1.2 N.m EN 60947-1

Device Presentation

monolithic product

Short-Circuit Protection

4 A cartridge fuse gG EN/IEC 60947-5-1

Contact Operation

slow-break

[Ie] Rated Operational Current

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

Shock Resistance

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Product Certifications

CCC || GOST

Shape Of Screw Head

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mmÂ² without cable end EN/IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage

4 kV EN/IEC 60947-1

Ambient Air Temperature For Operation

-25-70Â°C

Operator Profile

red flush, unmarked

Fixing Mode

fixing nut beneath head 2-2.4 N.m

Device Short Name

XB7

Shape Of Signaling Unit Head

round

Mechanical Durability

1000000 cycles

Ambient Air Temperature For Storage

-40-70Â°C

Contacts Type And Composition

1 NO + 1 NC

[Ui] Rated Insulation Voltage

250 V 3)EN/IEC 60947-1

Device Mounting

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

Fixing Center

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Overvoltage Category

class II IEC 61140

Terminals Description Iso NÂ°1

(13-14)NO || (21-22)NC

Electrical Durability

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Product Or Component Type

push-button

Nema Degree Of Protection

NEMA 12 UL 50 E || NEMA 3 UL 50 E

Protective Treatment

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 12, 3, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend, Standards Type 12 UL 50E, EN/IEC 60947-1, Type 3 UL 50E, CCC, Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-5-1, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL 508, Includes 4A Cartridge Fuse

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
