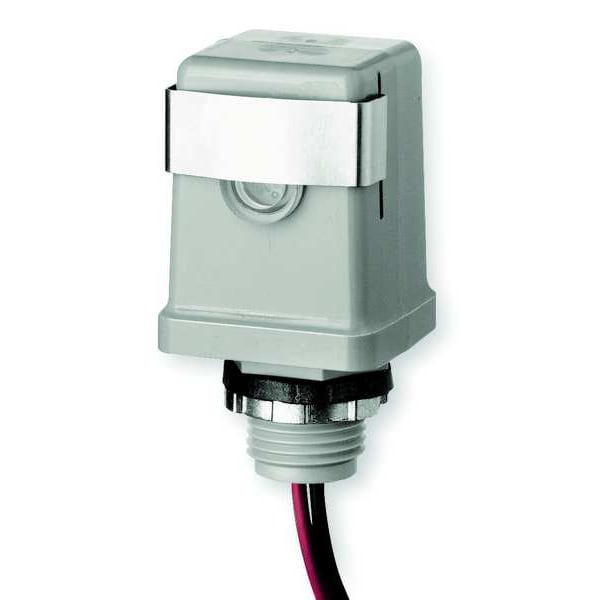

Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4123C

  • Zoro # G2788405

product price:  $25.86
/ea

Key Features

Compatible Lighting
Fluorescent, HID, Incandescent
AC Operating Voltage
208-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,150 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4123C
Zoro #
G2788405
UPC #
078275029590
Country of Origin
Mexico

Dimensions

Depth
1 9/16 in
Width
1 9/16 in
Length
2 5/16 in
Manufacturers Warranty Length
2 yr
Overall Height
3 in
Wire Size Max
#18 AWG
Wire Lead Length
9 in; 228.6 mm
Stem Diameter
1/2 in
Stem Thread Size
1/2"-14

Details

Item
Photocontrol
Compatible Lighting
Fluorescent, HID, Incandescent
AC Operating Voltage
208-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,150 W
Foot Candles On
1.0 to 5.0
Time Delay - Maximum
90 sec
Foot Candles Off
3 to 15
Time Delay - Minimum
30 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Includes
Lock Nut, Washer Gasket
Contact Form
SPST
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Enclosure Type
Raintight
Description/Special Features
1/2 in Threaded with Light Level Shield with Built in Delay
Setting
Dusk to Dawn
Standards
cCSAus, California Title 20, UL Listed
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Photocontrol Style
Stem Mount
Magnetic Ballast Load Ratings
8.3 A, 1700-2300 VA
Photocontrol Sensor Location
Side
Tungsten Load Ratings
15 A, 3100-4150 W
Photocontrol Type
Thermal
Activation On
1 to 5 fc
Applications
Outdoor Lighting Control
Fail Mode
ON
Photocontrol Photocell Type
Cadmium Sulfide
CSA Certification
cCSAus
Market
Commercial; Residential; Industrial
Wiring Option
Wire leads
Input Voltage Ranges
208-277 VAC, 50/60 Hz
Activation Off
3 to 15 fc
UL Certification
UL
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Photocontrol Switch Type
Mechanical Bimetal
Expected Lifetime Years
5
Expected Lifetime Operations
3650
Features
Cadmium Sulfide Photocell, Mechanical Bimetal Switch
Stem Thread Type
NPSM
On Illumination - Maximum
5 fc
Off Illumination - Maximum
15 fc
Indoor/Outdoor Usage
Outdoor
Operating Temperature - Minimum
-40 Degrees F
Off Illumination - Minimum
3 fc
Operating Temperature - Maximum
158 Degrees F
On Illumination - Minimum
1 fc
Mounting Style
Stem

Description

Photocontrol, Mounting Stem, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 5/16 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Lock Nut, Washer Gasket
