  15. Push-Button, 22 mm, Yellow

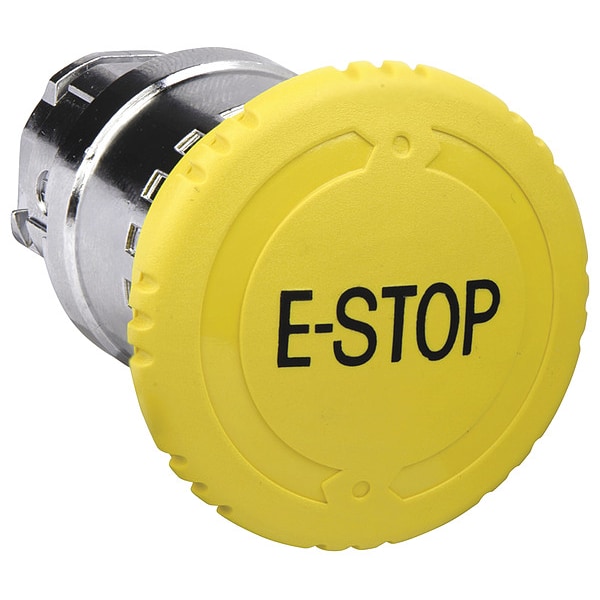

Schneider Electric Push-Button, 22 mm, Yellow ZB4BS5540 - main

Push-Button, 22 mm, Yellow

  • Mfr # ZB4BS5540

  • Zoro # G3461517

product price: $75.55
/ea
Sold in multiples of 42 for $3,173.10
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BS5540
Zoro #
G3461517
UPC #
785901928768
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Width
40 mm
Cad Overall Depth
57 mm
Cad Overall Height
40 mm
Overall Height
1.57 in
Overall Depth
2.24 in
Overall Width
1.57 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66, IP67, IP69, IP69K
Basic Material
Metal
Legend
E-Stop
Series
XB4
Type of Operator
40mm Mushroom Head
NEMA Rating
13, 4X
Legend/Background Color
Black/Yellow
Number of Operators
1
Features
300000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance
Color
Yellow
Bezel Material
Metal
Product Type
Push Button Operators
Reset
turn to release
Overvoltage Category
class I IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK06 IEC 50102
Product Certifications
UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
300000 cycles
Head Type
standard
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Short Name
ZB4
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Protective Treatment
TH
Electrical Composition Code
C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
Product Or Component Type
head for non-illuminated push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Resistance Properties
Shock Resistant, Vibration Resistant
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Legend Background Color
Yellow
Operator Material
Metal
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Legend Color
Black

Description

Mushroom Head Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend E-Stop, Legend/Background Color Black/Yellow
