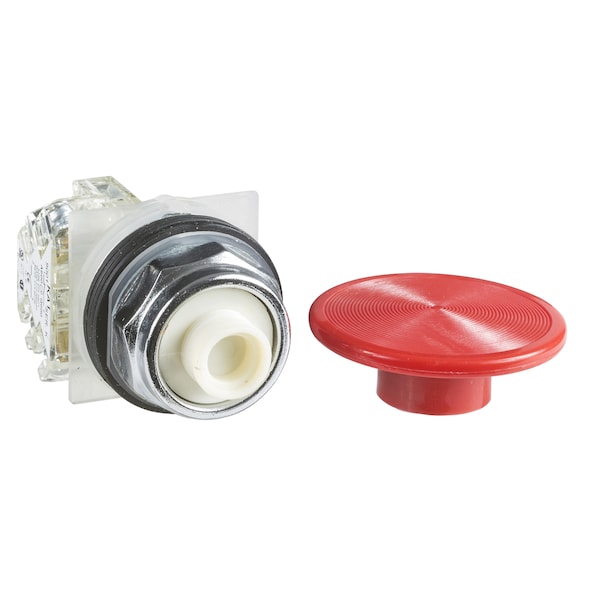

Push-button, Harmony 9001K, metal, snap-in plastic mushroom 57mm, red, 30mm, spring return, 1 NC

Push Button Operator

Mushroom Head

Red

Plastic

Screw Clamp

EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14

metal

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

-40-70°C

with IEC 60947-5-2

red

NEMA || UL 508

screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1

mushroom Ø 57 mm, red mushroom Ø 57 mm, unmarked

standard

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

spring return

10 A cartridge fuse EN/IEC 60947-5-1

complete product

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

cross slotted

silver alloy contacts

-25-70°C

1 NC

any position

TC

50 gn IEC 60068-2-27

5000000 cycles

round

9001K

0.8-0.8 N.m EN/IEC 60947-1

push-button

7 gn 2-500 Hz)IEC 60068-2-6

10 A

metal guard

class II IEC 61140

IP66 IEC 60529

2.5 kV EN/IEC 60947-1

Harmony 9001K
