  15. Push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, 2 positions, push-pull, 1 NC

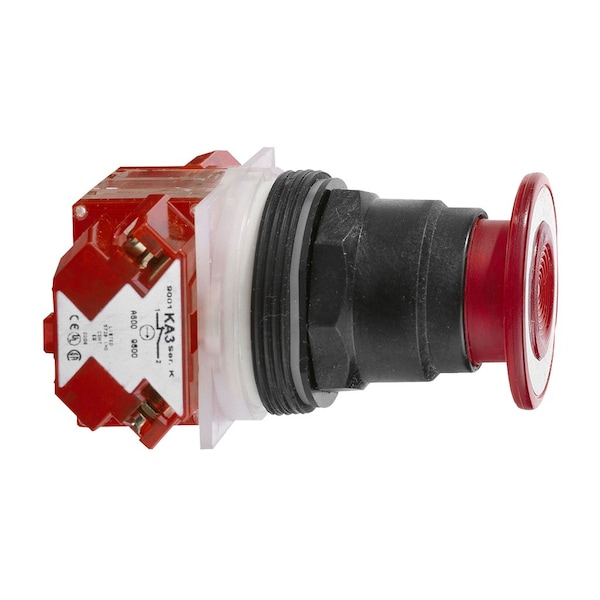

Schneider Electric Push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, 2 positions, push-pull, 1 NC 9001SKR9R20H6 - main

Push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, 2 positions, push-pull, 1 NC

  • Mfr # 9001SKR9R20H6

  • Zoro # G3302622

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained / Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR9R20H6
Zoro #
G3302622
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
35 mm
Size
30 mm
Mounting Diameter
30 mm
Cad Overall Depth
69 mm
Cad Overall Height
45 mm
Cad Overall Width
46 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained / Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Bezel Material
plastic
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13
Operator Profile
red mushroom Ø 35 mm, unmarked, mushroom Ø 35 mm
Mechanical Durability
5000000 cycles
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Operator Additional Information
screw-on plastic
[Ith] Conventional Free Air Thermal Current
10 A
Shape Of Screw Head
cross slotted
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Type Of Operator
push-pull
Contacts Material
silver alloy contacts
Rated Breaking Capacity
6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.55 kA 125 V DC-13
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Positive Opening
with IEC 60947-5-2
Product Or Component Type
push-button
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
complete product
Overvoltage Category
class II IEC 61140
Operator Position Information
2 positions
Compatibility Code
9001SK
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
1 NC
Device Short Name
9001SK
Protective Treatment
TC
Shape Of Signaling Unit Head
round
Operating Position
any position
Ambient Air Temperature For Storage
-40-70°C
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Cap/Operator Or Lens Colour
red
Ip Degree Of Protection
IP66 IEC 60529
Product Certifications
UL 508 || NEMA
Shock Resistance
50 gn IEC 60068-2-27
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Range of Product
Harmony 9001SK

Description

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
