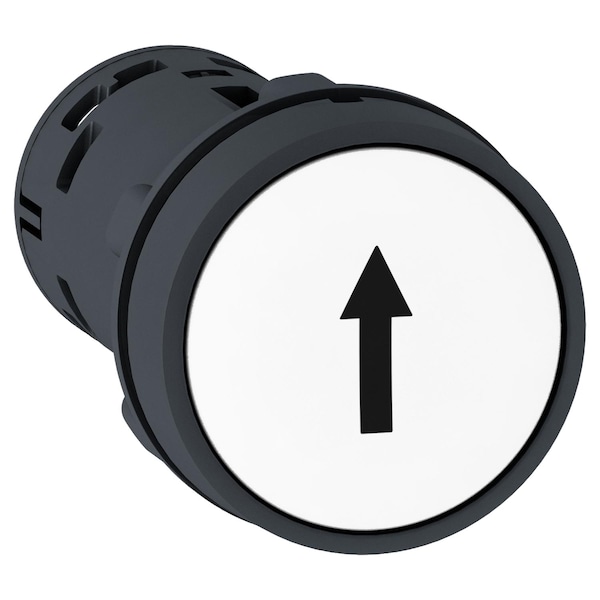

Push button, Harmony XB7, round white flush, 22mm, spring return, 1NO + 1NC, black marked up arrow

Push Button Operator

Flush

Maintained

White

Screw Clamp

JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1

monolithic product

fixing nut beneath head 2-2.4 N.m

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

white flush, up arrow black)

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

CCC || GOST

slow-break

5 gn 2-500 Hz)IEC 60068-2-6

-25-70°C

250 V 3)EN/IEC 60947-1

0.8-1.2 N.m EN 60947-1

class II IEC 61140

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

with NC contact EN/IEC 60947-5-1 appendix K

(21-22)NC || (13-14)NO

1 NO + 1 NC

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1

Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4

round

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

push-button

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

TH

1000000 cycles

4 A cartridge fuse gG EN/IEC 60947-5-1

-40-70°C

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1

spring return

4 kV EN/IEC 60947-1

NEMA 12 UL 50 E || NEMA 3 UL 50 E

Harmony XB7
