  15. Push Button Operator, 22 mm, 1NO/1NC, Yellow

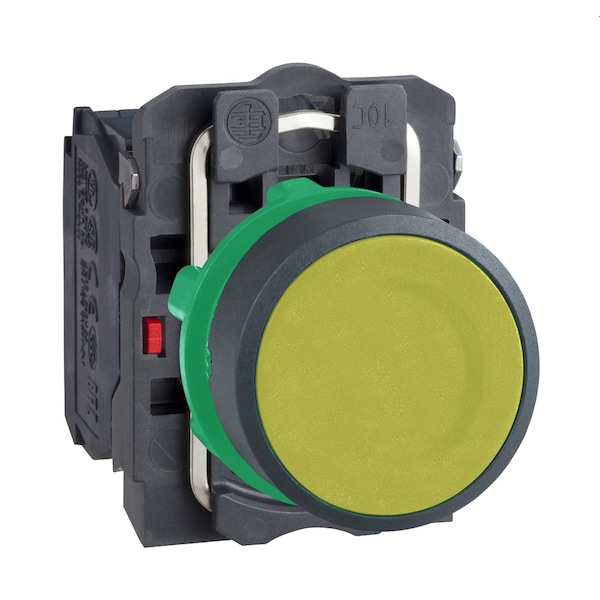

Schneider Electric Push Button Operator, 22 mm, 1NO/1NC, Yellow XB5AA55 - main

Push Button Operator, 22 mm, 1NO/1NC, Yellow

  • Mfr # XB5AA55

  • Zoro # G0847034

product price: $52.39
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AA55
Zoro #
G0847034
UPC #
785901624264
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Width
30 mm
Height
42 mm
Depth
52 mm
Overall Width
1.18 in
Overall Height
1.65 in
Overall Depth
2.05 in
Manufacturer Warranty Length
18 mo
Mounting Diameter
22 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CSA, DNV, Germanischer Lloyd (GL), Lloyd's Register, REACH, RoHS, UL Listed, WEEE
Contact Form
1NO/1NC
IP Rating
IP66, IP67, IP69, IP69K
Bezel
Plastic
Number of Operators
1
Basic Material
Plastic
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Material
Plastic
Color
Yellow
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/Q600
Type of Operator
Flush Button
Bezel Material
Plastic
Series
XB5
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Plastic
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
600 V AC/DC
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
NEMA Enclosure Rating
13, 4X
Operating Temperature - Minimum
-40 Degrees F
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Product Or Component Type
push-button
Ambient Air Temperature For Storage
-40-70°C
Electrical Durability
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Contacts Type And Composition
1 NO + 1 NC
Mechanical Durability
10000000 cycles
Head Type
standard
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Device Presentation
complete product
Overvoltage Category
class II IEC 60536
Positive Opening
with EN/IEC 60947-5-1 appendix K
Contact Operation
slow-break
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Contacts Usage
standard contacts
Ambient Air Temperature For Operation
-40-70°C
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Product Certifications
UL Listed || GL || BV || DNV || LROS (Lloyds register of shipping) || CSA
Device Short Name
XB5
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Fixing Collar Material
plastic
Protective Treatment
TH
Tightening Torque
0.8-1.2 N.m EN 60947-1
Contacts Material
silver alloy (Ag/Ni)
Customizable
yes, 1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Compatibility Code
XB5
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operator Profile
yellow flush, unmarked
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of Protection
IK03 IEC 50102

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards Bureau Veritas, CSA, DNV, Germanischer Lloyd (GL), Lloyd's Register, REACH, RoHS, UL Listed, WEEE, Terminal Connection Screw Clamp
