  15. Push Button operator, 22 mm, Red

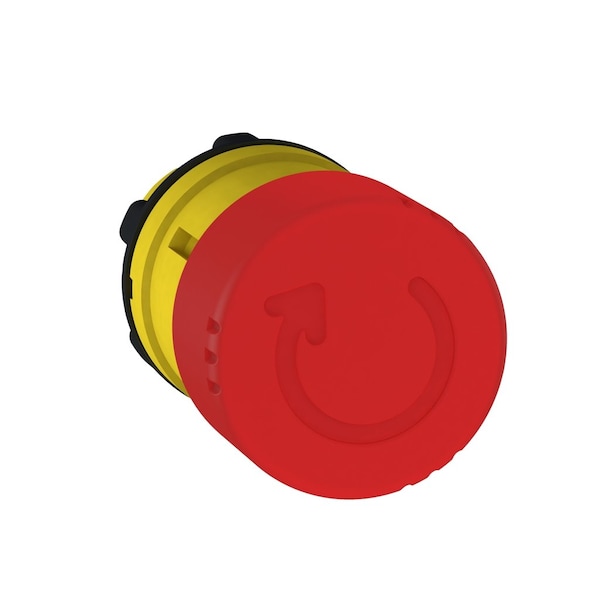

Schneider Electric Push Button operator, 22 mm, Red ZB5AS834 - main

Push Button operator, 22 mm, Red

  • Mfr # ZB5AS834

  • Zoro # G6373963

product price: $77.69
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AS834
Zoro #
G6373963
UPC #
785901387633
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
30 mm
Size
22 mm
Cad Overall Width
30 mm
Cad Overall Height
30 mm
Cad Overall Depth
57 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.18 in
Overall Depth
2.24 in
Overall Width
1.18 in

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Bezel Material
Plastic
Type of Operator
30mm dia Mushroom Head
Color
Red
Basic Material
Plastic
IP Rating
IP66
NEMA Rating
1, 13, 2, 3, 4, 4X
Features
Latching
Number of Operators
1
Series
XB5
Station Name
XALD 1 to 5 cut-outs || XALK 1 to 5 cut-outs
Ik Degree Of Protection
IK03 IEC 50102
Operator Profile
red mushroom Ø 30 mm, unmarked
Electrical Composition Code
C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
Reset
turn to release
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
Device Short Name
ZB5
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
head for emergency stop push-button
Overvoltage Category
class II IEC 60536
Product Certifications
CSA || GL || BV || LROS (Lloyds register of shipping) || DNV || UL Listed
Mechanical Durability
300000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Destination
emergency stop push-button
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Protective Treatment
TH
Device Presentation
basic element
Compatibility Code
ZB5
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shape Of Signaling Unit Head
round
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Number of Indicator Lights
0
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Multihead Operator, 22 mm, Maintained, Type of Operator 30mm dia Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable
