  13. Push Button Operator, 22mm, Black

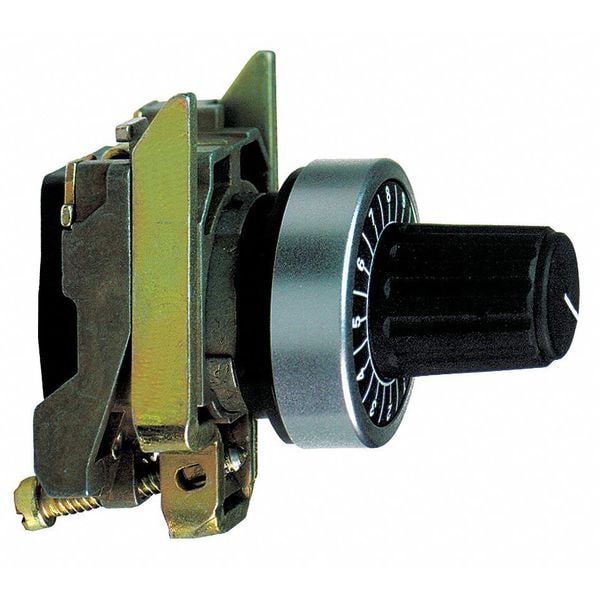

Schneider Electric Push Button Operator, 22mm, Black ZB4BD912 - main

Push Button Operator, 22mm, Black

  • Mfr # ZB4BD912

  • Zoro # G6804165

product price: $132.99
/ea
Free Shipping & Returns

Key Features

NEMA Rating
13, 4X
Size
22 mm
Device Presentation
basic element
Product Compatibility
for use with Ø 6 mm shaft
Device Short Name
ZB4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BD912
Zoro #
G6804165
UPC #
785901381983
Country of Origin
France

Dimensions

Size
22 mm
Mounting Diameter
22 mm
Overall Depth
2.36 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Overall Width
1.18 in
Overall Height
1.83 in

Details

Item
Potentiometer
NEMA Rating
13, 4X
Device Presentation
basic element
Product Compatibility
for use with Ø 6 mm shaft
Device Short Name
ZB4
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
LROS (Lloyds register of shipping) || CSA || BV || GL || DNV || UL Listed
Protective Treatment
TH
Electrical Shock Protection Class
class I IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Or Component Type
head + mounting base for potentiometer
Operator Profile
knurled knob, with white)
Standards
UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Bezel Material
chromium plated metal
Shape Of Signaling Unit Head
round
Head Type
standard
Ik Degree Of Protection
IK03 IEC 50102
Ip Degree Of Protection
IP66 IEC 60529
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
NEMA Enclosure Rating
13, 4X
Series
XB4
IP Rating
IP66
Knob Style
Standard
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Potentiometer, NEMA Rating 13, 4X, 22 mm Size
