  15. Push Button Operator, 30 mm, 1NC, Black

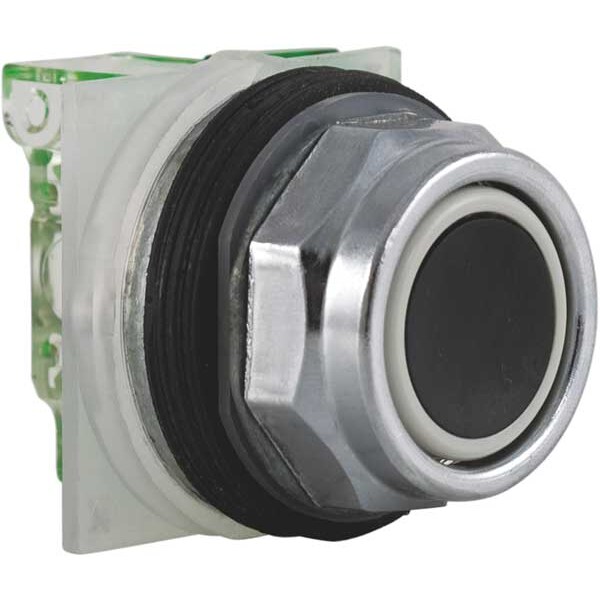

Schneider Electric Push Button Operator, 30 mm, 1NC, Black 9001KR1BH6 - main

Push Button Operator, 30 mm, 1NC, Black

  • Mfr # 9001KR1BH6

  • Zoro # G0573316

product price: $66.45
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR1BH6
Zoro #
G0573316
UPC #
785901821052
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Contact Rating
10A @ 600V AC
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Bezel
Chrome Plated Die Cast Aluminum
Contact Form
1NC
Color
Black
Material
metal
IP Rating
IP66
Number of Operators
1
Type of Operator
Flush Button
NEMA Contact Rating Designation
A600/Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
9001K
Bezel Material
Metal
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Product Certifications
CSA LR 25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR || NEMA
Operator Profile
flush, black flush
Device Presentation
complete product
Light Block Supply
without supply
Operating Position
any position
Product Or Component Type
push-button
Contact Operation
standard
Cap/Operator Or Lens Colour
black
Light Source
without
Device Short Name
K
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Operator Additional Information
metal guard
Contacts Type And Composition
1 NC
Connections - Terminals
screw clamp terminals
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operating Temperature - Minimum
-22 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC

Description

Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Die Cast Aluminum, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
