  15. Push Button Operator, 30 mm, 1NC, Red

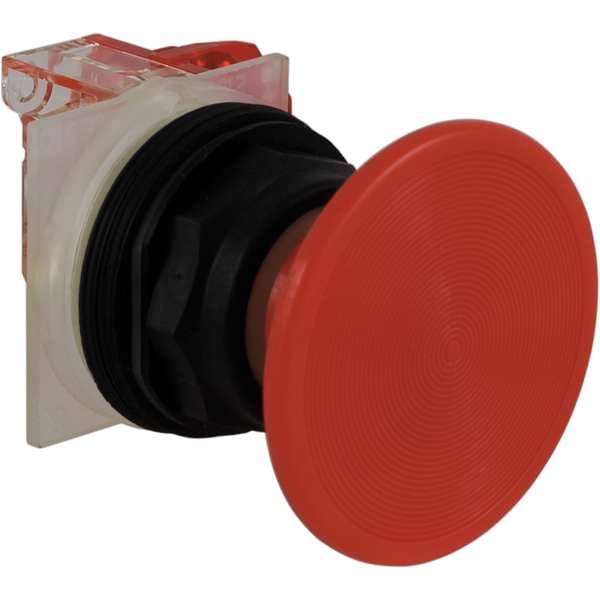

Schneider Electric Push Button Operator, 30 mm, 1NC, Red 9001SKR25RH6 - main

Push Button Operator, 30 mm, 1NC, Red

  • Mfr # 9001SKR25RH6

  • Zoro # G1184206

product price: $136.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR25RH6
Zoro #
G1184206
UPC #
785901042556
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
57 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Color
Red
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Bezel
Corrosion Resistant Thermoplastic
Material
Plastic
IP Rating
IP66
Contact Form
1NC
Number of Operators
1
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/Q600
Features
Finger-Safe Terminals
Basic Material
Plastic
Type of Operator
57mm Mushroom Head
Series
9001SK
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Bezel Material
Plastic
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Contact Operation
standard
Product Or Component Type
push-button
Cap/Operator Or Lens Colour
red
Ip Degree Of Protection
IP66
Device Presentation
complete product
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Device Short Name
9001SK
Operator Profile
mushroom Ø 57 mm, red mushroom Ø 57 mm
Operator Additional Information
screw-on plastic with set screw
Mechanical Durability
5000000 cycles
Contacts Type And Composition
1 NC
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-22 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Mechanical Operating Durability
5.00 x 10^6

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 57mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Corrosion Resistant Thermoplastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
