- MFR #
- GV2P21
- Zoro #
- G3259356
- UPC #
- 785901832966
- Country of Origin
- Thailand
- Item

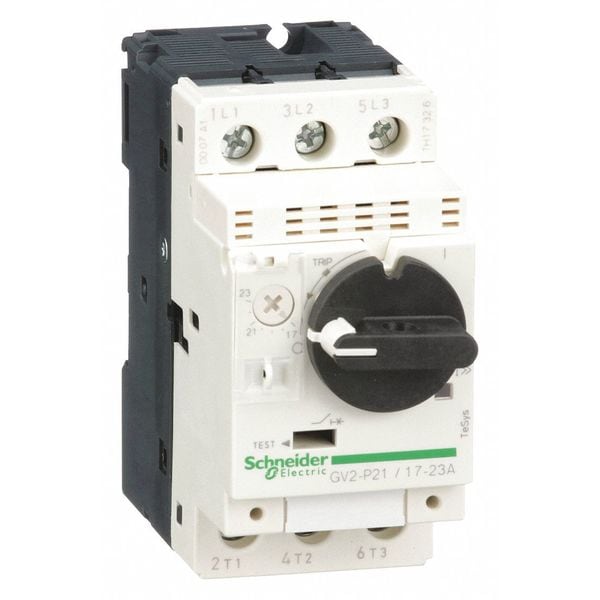

- Manual Motor Starter
- Number of Poles
- 3
- Operator
- Selector Switch
- Phase
- 3
- Current AC
- 23 A
- Series
- TeSys Deca
- Standards
- ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
- HP @ 3 Phase - 575V
- 20 hp
- HP @ 3 Phase - 460-575V
- 15/20
- Pilot Light
- Yes
- HP @ 1 Phase - 230V
- 3 hp
- Phase Loss Sensitivity
- Yes
- Description/Special Features
- Reliable Overload Protection
- Ik Degree Of Protection
- IK04
- Ambient Air Temperature For Storage
- -40-80°C
- Motor Power Kw
- 9-9 kW 400/415 V AC 50/60 Hz || 11-11 kW 500 V AC 50/60 Hz || 18.5-18.5 kW 690 V AC 50/60 Hz
- Rated Duty
- continuous IEC 60947-4-1
- Fire Resistance
- 960°C IEC 60695-2-11
- Color
- dark grey
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Network Type
- AC
- Device Application
- motor protection
- Power Dissipation Per Pole
- 2.5 W
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Fixing Mode
- 35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
- Suitability For Isolation
- yes IEC 60947-1§ 7-1-6
- Operating Altitude
- 6561.68 ft (2000 m)
- Trip Unit Technology
- thermal-magnetic
- Magnetic Tripping Current
- 327-327 A
- Thermal Protection Adjustment Range
- 17-23 A IEC 60947-4-1
- Device Short Name
- GV2P
- Tightening Torque
- 1.7 N.m screw clamp terminal
- Range
- TeSys Deca
- Utilisation Category
- category A IEC 60947-2 || AC-3 IEC 60947-4-1
- Climatic Withstand
- IACS E10
- Product Name
- TeSys GV2 || TeSys Deca
- Horsepower @ Three Phase - 240V AC
- 7 1/2 hp
- Starter Style
- IEC
- Terminal Connection Type
- Screw Clamp Terminals
- Status Indicator
- LED Indicator
- Maximum Overload Relay Current Setting
- 23 A
- Electrical Operating Durability
- 100,000
- Resistance Properties
- Fire Resistant
- IP Rating
- IP20
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Horsepower @ Single Phase - 120V AC
- 1 1/2 hp
- NEMA Enclosure Rating
- No Enclosure
- Maximum Operating Temperature
- 140 Degrees F
- Frequency
- 50/60 Hz
- Minimum Overload Relay Current Setting
- 17 A
- Horsepower @ Three Phase - 480V AC
- 15 hp
- Horsepower @ Three Phase - 208V AC
- 5 hp
- Horsepower @ Three Phase - 600V AC
- 20 hp
- Overload Protection Type
- Thermal
- Minimum Operating Temperature
- -4 Degrees F
- Mechanical Operating Durability
- 100,000
- Includes Pilot Light
- No
- Maximum Voltage Rating
- 600V AC
- Rated Service Short-Circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 75 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2
