  15. Push Button operator, 30 mm, Black

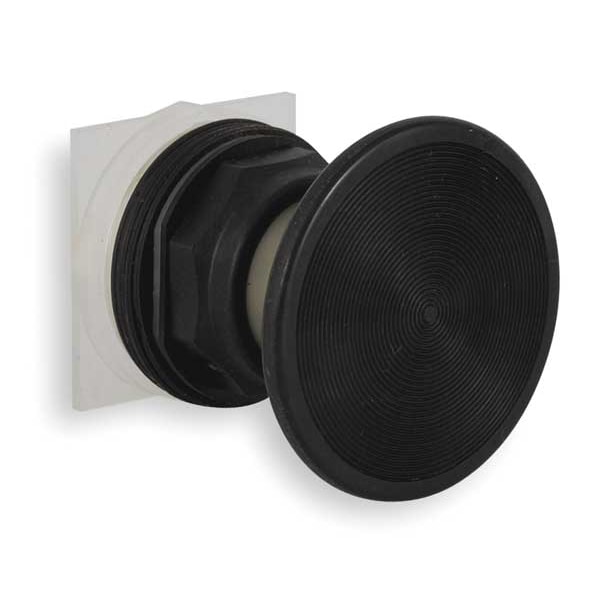

Schneider Electric Push Button operator, 30 mm, Black 9001SKR25B - main

Push Button operator, 30 mm, Black

  • Mfr # 9001SKR25B

  • Zoro # G1583687

product price: $89.19
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR25B
Zoro #
G1583687
UPC #
785901042365
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
57 mm
Size
30 mm
Overall Width
1.81 in
Overall Height
1.77 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.72 in
Cad Overall Depth
69 mm
Cad Overall Width
46 mm
Mounting Diameter
30 mm
Cad Overall Height
45 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Standards
CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, UL 508 File E78403 CCN NKCR
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
IP Rating
IP66
Accessory Group
H
Bezel Material
Plastic
Type of Operator
60mm Mushroom Head
Basic Material
Plastic
Color
Black
Number of Operators
1
Features
3-Function Head
Series
9001SK
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operator Material
Plastic
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Shape Of Signaling Unit Head
round
Operator Profile
mushroom Ø 57 mm, black mushroom Ø 30 mm, unmarked
Device Short Name
9001SK
Ip Degree Of Protection
IP66 IEC 60529
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TC
Contacts Type And Composition
without contact block
Mechanical Durability
5000000 cycles
Electrical Shock Protection Class
class II IEC 61140
Cap/Operator Or Lens Colour
black
Ambient Air Temperature For Operation
-25-70°C
Operator Additional Information
screw-on plastic with set screw
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
head for push-button
Product Certifications
CSA LR25490 class 3211 03 || NEMA || UL 508 || UL listed file E78403 CCN NKCR
Shock Resistance
50 gn IEC 60068-2-27
Operating Position
any position
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Description

Mushroom Head Push Button, 30 mm, Momentary, Type of Operator 60mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Black, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, UL 508 File E78403 CCN NKCR
