This item is Discontinued.

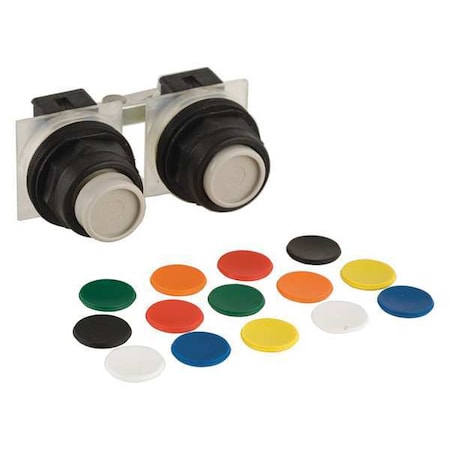

Schneider Electric Push Button operator, 30 mm, Multi 9001SKR11U

Push Button operator, 30 mm, Multi (Discontinued)

  • Mfr # 9001SKR11U
  • Zoro # G3128772
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR11U
Zoro #
G3128772
UPC #
785901546634
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Cad Overall Height
45 mm
Cad Overall Width
46 mm
Cad Overall Depth
69 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.77 in
Overall Width
1.81 in
Overall Depth
2.72 in

Details

Item
Mushroom Head Push Button
Push Button Style
Mushroom Head
Action
Maintained/Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Head Color
Black, Blue, Green, Orange, Red, White, Yellow
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL E78403 CCN NKCR, WEEE
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Color
Multi
Includes
1 Each Black, Red, Green, Yellow, Orange, Blue and White
IP Rating
IP66
Number of Operators
2
Type of Operator
Full Guard
Bezel Material
Plastic
Series
9001SK
Shock Resistance
50 gn IEC 60068-2-27
Mechanical Durability
5000000 cycles
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP66 IEC 60529
Contacts Type And Composition
without contact block
Device Short Name
9001SK
Product Or Component Type
head for double-headed push-button
Shape Of Signaling Unit Head
round
Electrical Shock Protection Class
class II IEC 61140
Protective Treatment
TC
Product Certifications
UL listed file E78403 CCN NKCR || CSA LR25490 class 3211 03 || NEMA || UL 508
Ambient Air Temperature For Operation
-25-70°C
Mechanical Interlocking
with mechanical interlocking
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Operator Profile
mushroom Ø 30 mm, unmarked, flush
Cap/Operator Or Lens Colour
7 colours choice
Operating Position
any position
Number of Indicator Lights
0
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Class I, Div 2, Group A, Class I, Div 2, Group B, C, D, Class II, Div 2, Group E, F, Class II, Div 2, Group G, Class III, Div 1 and 2
Operator Material
Plastic
Operating Temperature - Minimum
-13 Degrees F
Product Type
Push Button Operators

Description

Mushroom Head Push Button, 30 mm, Maintained/Maintained, Type of Operator Full Guard, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Multi, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, UL E78403 CCN NKCR, WEEE, Includes 1 Each Black, Red, Green, Yellow, Orange, Blue and White
