Item

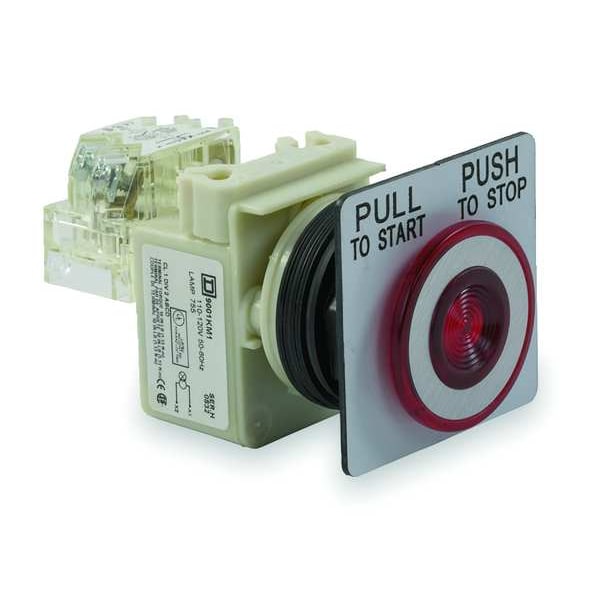

Push Button Operator
Push Button Style
Mushroom Head
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, IEC 60947-1, IEC 60947-5-4, JIS C4520, JIS C852, NF C 20-010, REACH, UL 508, WEEE
Replacement Lamp
Mfr. No. 755
NEMA Contact Rating Designation
A600/Q600
Contact Rating
10A @ 600V AC
Bezel
Corrosion Resistant Thermoplastic
Type of Operator
41mm Mushroom Head
Lamp Module Voltage
120V AC
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Module Type
Transformer
Features
Self-Grounding, Finger-Safe Terminals
Legend
Pull to Start/Push to Stop
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Operator Position Information
2 positions
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
red mushroom Ø 41 mm, mushroom Ø 41 mm
Ambient Air Temperature For Operation
-25-70°C
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Mechanical Durability
5000000 cycles
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Device Presentation
complete product
[Ith] Conventional Free Air Thermal Current
10 A
Shape Of Screw Head
cross slotted
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP66 NF C 20-010
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Contacts Type And Composition
1 C/O
[Us] Rated Supply Voltage
110 to 120 V AC 50 to 60 Hz, 110 to 120 V
Operator Additional Information
screw-on plastic
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Light Block Supply
via integral transformer
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colour
red
Supply Frequency
50 to 60 Hz
Electrical Shock Protection Class
class II IEC 60536
Shape Of Signaling Unit Head
round
Contacts Material
silver alloy contacts
Operating Position
any position
Light Source
incandescent bulb, incandescent
Product Or Component Type
illuminated push-button
Shock Resistance
50 gn IEC 60068-2-27
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
Lamp Voltage - Maximum
120 V AC
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC
Operating Temperature - Minimum
-13 Degrees F
Legend Background Color
White
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Mechanical Operating Durability
5.00 x 10^6
Number of Indicator Lights
0
