  15. Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Green

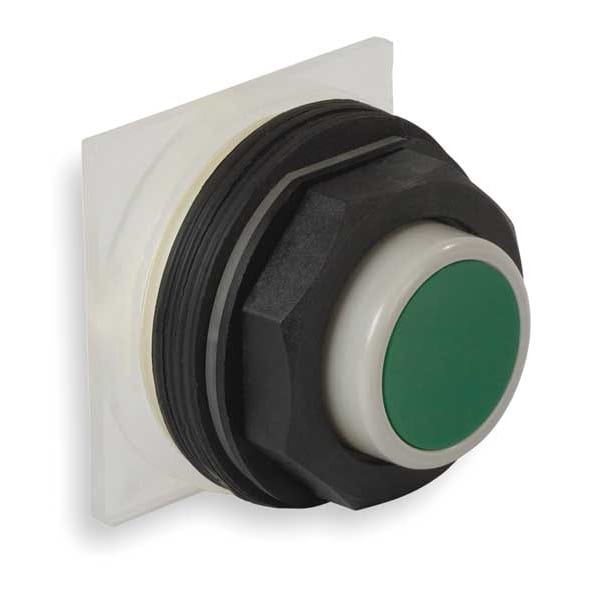

Schneider Electric Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Green 9001SKR3G - main

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Green

  • Mfr # 9001SKR3G

  • Zoro # G1678424

product price: $49.29
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR3G
Zoro #
G1678424
UPC #
785901042709
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Cad Overall Width
46 mm
Cad Overall Height
45 mm
Mounting Diameter
30 mm
Cad Overall Depth
69 mm
Overall Depth
2.72 in
Overall Width
1.81 in
Manufacturer Warranty Length
18 mo
Overall Height
1.77 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Standards
CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, UL 508 File E78403 CCN NKCR
IP Rating
IP66
Accessory Group
E
Bezel Material
Plastic
Color
Green
Basic Material
Plastic
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Type of Operator
Extended Button
Number of Operators
1
Features
Double Head
Series
9001SK
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
head for push-button
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
9001SK
Contacts Type And Composition
without contact block
Product Certifications
NEMA || CSA LR25490 class 3211 03 || UL listed file E78403 CCN NKCR || UL 508
Shape Of Signaling Unit Head
round
Electrical Shock Protection Class
class II IEC 61140
Operator Profile
black mushroom Ø 30 mm, unmarked, projecting
Cap/Operator Or Lens Colour
green
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Mechanical Durability
5000000 cycles
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Operating Position
any position
Protective Treatment
TC
Shock Resistance
50 gn IEC 60068-2-27
Operator Material
Plastic
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Extended Push Button, 30 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, CSA LR25490 Class 3211 03, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, UL 508 File E78403 CCN NKCR, Features Double Head
