  15. Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Red

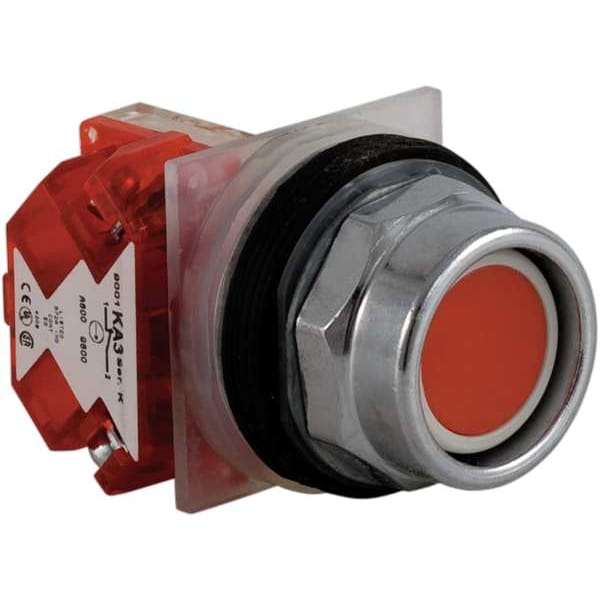

Schneider Electric Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Red 9001KR2RH6 - main

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Red

  • Mfr # 9001KR2RH6

  • Zoro # G2229945

product price: $60.59
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR2RH6
Zoro #
G2229945
UPC #
785901033691
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Contact Form
1NC
Contact Rating
10A @ 600V AC
Color
Red
NEMA Contact Rating Designation
A600/Q600
Features
Finger-Safe Terminals
Material
metal
Type of Operator
Extended Button
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Bezel Material
Metal
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Connections - Terminals
screw clamp terminals
Contact Operation
standard
Operator Profile
red recessed, recessed
Light Source
without
Cap/Operator Or Lens Colour
red
Contacts Type And Composition
1 NC
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Light Block Supply
without supply
Device Short Name
K
Operator Additional Information
metal guard
Operating Position
any position
Product Certifications
NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
Device Presentation
complete product
Product Or Component Type
push-button
Rated Operational Current
10 A, AC-15; 10 A, DC-13
Operator Material
Metal
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-22 Degrees F

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
