  12. /
  13. Push Button Operator Switches
  14. /
  15. Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red

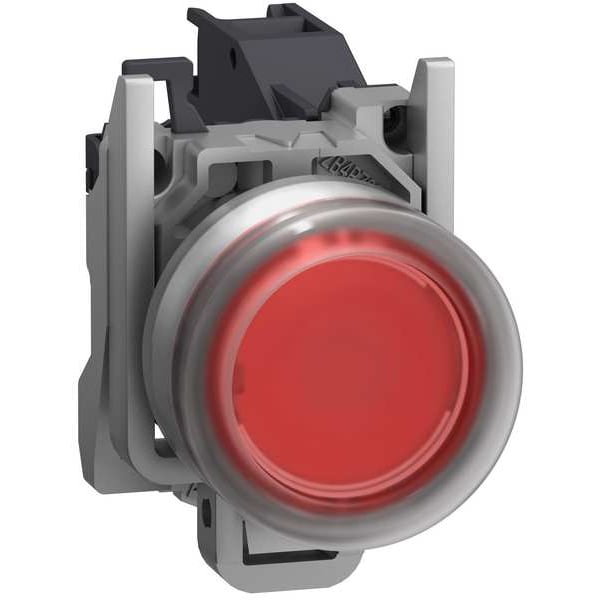

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red XB4BP482GEX - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red

  • Mfr # XB4BP482GEX

  • Zoro # G9225770

product price: $162.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BP482GEX
Zoro #
G9225770
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Height
30 mm
Depth
72 mm
Width
46.2 mm
Size
22 mm
Overall Height
1.18 in
Overall Width
1.82 in
Overall Depth
2.83 in
Mounting Diameter
22 mm
Embedding Depth
58 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, INERIS 04ATEX9004U, REACH, RoHS, UL 60079-0, UL 60079-1, UL 60079-31, WEEE
IP Rating
IP66
Contact Form
1NC
Number of Operators
1
NEMA Contact Rating Designation
A600/Q300
Color
Red
Contact Rating
10 A @ 415V AC
Bezel
Metal
Bezel Material
Chrome
Type of Operator
Extended Push Button
Safety Rating
Zone 2
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
XB4
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Number of Indicator Lights
0
Operator Material
Metal
Product Type
Push Button Operators
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Maximum
167 Degrees F
Mechanical Operating Durability
5.00 x 10^6
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Voltage Rating - Maximum
415 V AC
Operating Temperature - Minimum
-4 Degrees F
Product Or Component Type
complete push-button
Operator Additional Information
booted (clear silicon) for insertion of legend
Contact Operation
slow-break
Operating Travel
1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)
Positive Opening
with
Shape Of Signaling Unit Head
round
Contacts Type And Composition
1 NC
Marking
Ex db eb IIC Gb || Ex tb IIIC Db || II 2 GD
Tightening Torque
0.8-1.2 N.m EN 60947-1
Dust Zone
zone 21 - 22
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Gas Zone
zone 1 - 2
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Fixing Collar Material
zamak
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
XB4
Product Certifications
INERIS 04ATEX9004U
Protective Treatment
TH
Operating Force
2.873 N
Ambient Air Temperature For Operation
-20-75°C
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
[Ui] Rated Insulation Voltage
415 V
Mechanical Durability
5000000 cycles
Operator Profile
red projecting

Description

Flush Push Button Operator, 22 mm, Momentary Action, Extended Push Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Metal, Color Red, Contact Rating 10 A @ 415V AC, NEMA Contact Rating Designation A600/Q300, Number of Operators 1, IP Rating IP66, Legend Not Applicable, Standards ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, INERIS 04ATEX9004U, REACH, RoHS, UL 60079-0, UL 60079-1, UL 60079-31, WEEE
