  15. Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red

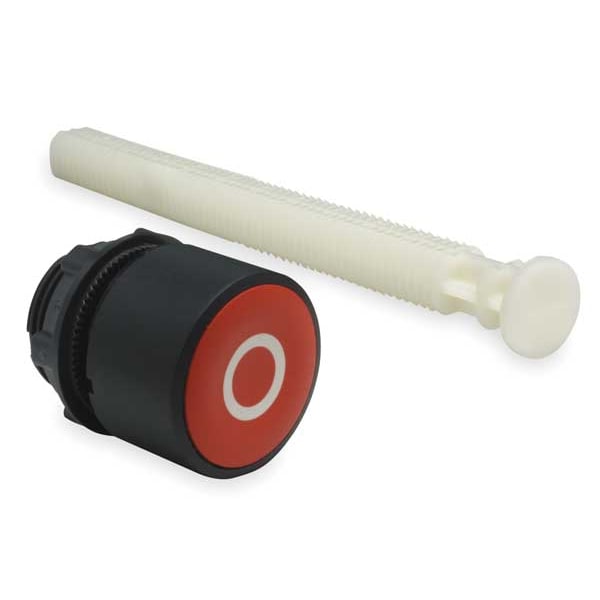

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red XB5AA84101 - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, Red

  • Mfr # XB5AA84101

  • Zoro # G0878997

product price: $45.55
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XB5AA84101
Zoro #
G0878997
UPC #
785901383574
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Width
29 mm
Depth
120 mm
Height
29 mm
Manufacturer Warranty Length
18 mo
Overall Depth
4.72 in
Overall Width
1.14 in
Overall Height
1.14 in
Mounting Diameter
22 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-1, IEC 50102, IEC 60529, REACH Free of SVHC, RoHS, UL Listed
Legend/Background Color
White/Red
Bezel Material
Plastic
Color
Red
Legend
O
NEMA Rating
4x
Basic Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Type of Operator
Flush Button
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB5
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Plastic
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Legend Background Color
Red
Hazardous Location Specification
Not Rated
Legend Color
White
Number of Indicator Lights
0
Operator Profile
red flush, O white)
Device Short Name
XB5
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Presentation
complete product
Electrical Shock Protection Class
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Activating Distance
17-120 mm
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK03 IEC 50102
Product Or Component Type
manual overload reset push-button
Ambient Air Temperature For Operation
-40-70°C
Fixing Collar Material
plastic
Nema Degree Of Protection
NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529
Operating Travel
10 mm
Product Certifications
UL Listed

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 4X, IP Rating IP66, IP67, IP69, IP69K, Legend O, Legend/Background Color White/Red, Standards EN/IEC 60947-1, IEC 50102, IEC 60529, REACH Free of SVHC, RoHS, UL Listed, Features Visually Distinct at a Distance, Snap-Fit Assembly
