Shop SCHNEIDER ELECTRIC

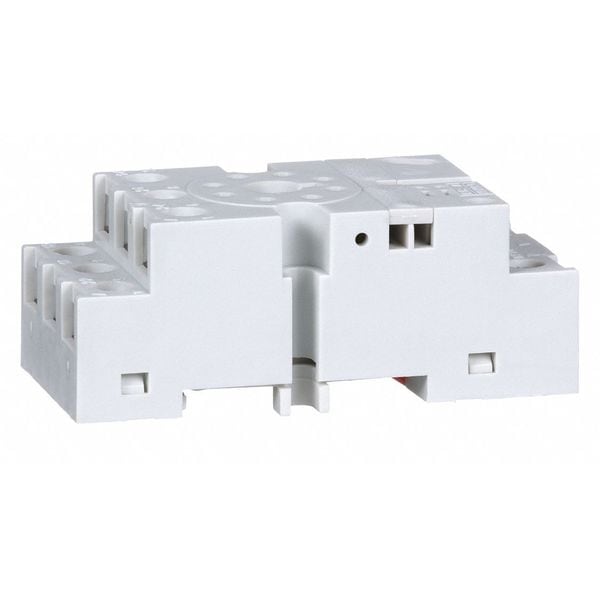

Relay Socket, Standard, Octal, 8 Pin, 16A

  • Mfr # 8501NR52

  • Zoro # G2926061

product price:  $13.78
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail, Surface
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8501NR52
Zoro #
G2926061
UPC #
785901583851
Country of Origin
Taiwan, Province of China

Dimensions

Width - Relay Socket
1.42 in
Depth - Relay Socket
3 in
Depth
1.42 in
Width
1.42 in
Height - Relay Socket
0.97 in
Length
2.02"
Height
3.05 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail, Surface
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
8
Socket Code
A
Contact Rating - Relay Socket
16A @ 250V AC
Color
White
Socket Type
Elevator
Standards
CE Certified, CSA Certified, UL Recognized
Mounting
DIN Rail/Surface
Contact Rating
16A @ 250VAC
Terminals
Screw Clamp
Item
Relay Socket
Status Indicator
None
Socket Style
Octal
Voltage
250VAC
Number of Pins
8
Pin Shape
Round
Mounting Style
DIN Rail & Surface
Electrical Connection
Screw Clamp
Contact Form
DPDT
Number of Terminals
8
Base Style
Octal
Contact Rating (AC)
16 A @ 300V, 5 A @ 600V
Current Rating
16 A
Compatible Relays
JCK Series, Square D 8501K Series
Line Rated Current
5 A 600 V AC || 16 A 300 V AC
Mounting Support
DIN rail || panel
Product Or Component Type
Relay Socket
Pin Number
8
Shape Of Pin
tubular
Product Certifications
UL Recognized || CSA || CE
Rated Current
5 A 600 V AC; 16 A 300 V AC
Certifications
UL Recognized; CSA; CE
Mounting Type
DIN rail; Panel

Description

Relay Socket, Base Style Octal, Contact Form DPDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 8, Number of Terminals 8, Pin Shape Round, Socket Type Elevator, Mounting Style DIN Rail & Surface, Color White, Compatible Relays JCK Series, Square D 8501K Series, Contact Rating (AC) 16 A @ 300V, 5 A @ 600V, Depth 1.42 in, Height 3.05 in, Standards CE Certified, CSA Certified, UL Recognized, Status Indicator None, Width 1.42 in
