  15. Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, White

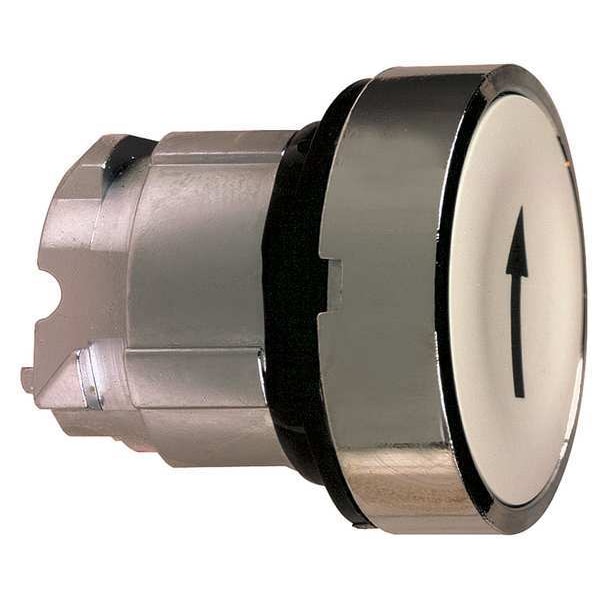

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, White ZB4BA334 - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Non-Illuminated, White

  • Mfr # ZB4BA334

  • Zoro # G9720636

product price: $14.95
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA334
Zoro #
G9720636
UPC #
785901381808
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
28 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.1 in
Overall Height
1.14 in
Overall Width
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
White
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
1, 13, 2, 3, 4, 4X
Legend
Up Arrow
IP Rating
IP66
Legend/Background Color
Black/white
Color
Green
Bezel Material
Metal
Type of Operator
Flush Button
Basic Material
Metal
Number of Operators
1
Series
XB4
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
white flush, up arrow black)
Ambient Air Temperature For Operation
-40-70°C
Device Short Name
ZB4
Product Certifications
DNV || BV || CSA || LROS (Lloyds register of shipping) || GL || UL Listed
Device Presentation
basic element
Ik Degree Of Protection
IK06 IEC 50102
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Product Or Component Type
head for non-illuminated push-button
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Protective Treatment
TH
Overvoltage Category
class I IEC 60536
Mechanical Durability
10000000 cycles
Shape Of Signaling Unit Head
round
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operating Temperature - Minimum
-40 Degrees F
Legend Color
Black
Legend Background Color
White
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Maximum
158 Degrees F

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Up Arrow, Legend/Background Color Black/White
