Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RINA, RoHS, UL 508, UL Listed, WEEE
Color
Yellow
Number of Operators
1
Material
Plastic
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Basic Material
Plastic
Contact Form
1NO
Type of Operator
Flush Button
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66, IP67, IP69, IP69K
Bezel
Plastic
Bezel Material
Plastic
Series
XB5
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Mechanical Durability
10000000 cycles
Customizable
no, 1
Product Certifications
UL Listed || BV || CSA || RINA || LROS (Lloyds register of shipping) || DNV || GL
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operator Profile
yellow flush, unmarked
Product Or Component Type
push-button
Head Type
standard
Operating Force
3.8 N NO changing electrical state
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Type And Composition
1 NO
Device Short Name
XB5
Overvoltage Category
class II IEC 60536
Contact Operation
slow-break
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Terminals Description Iso N°1
(13-14)NO
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Contacts Material
silver alloy (Ag/Ni)
Contacts Usage
standard contacts
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Device Presentation
complete product
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Compatibility Code
XB5
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Fixing Collar Material
plastic
Ik Degree Of Protection
IK03 IEC 50102
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Tightening Torque
0.8-1.2 N.m EN 60947-1
Positive Opening
without
Terminals Description Iso N°1
(13-14)NO
Operator Voltage Rating - Maximum
600 V AC/DC
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^7
NEMA Enclosure Rating
13, 4X
Operator Material
Plastic
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F

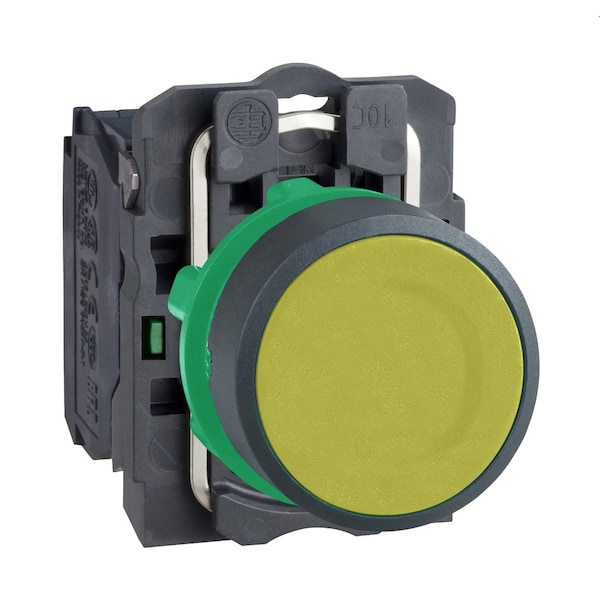

Description
Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Plastic, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
