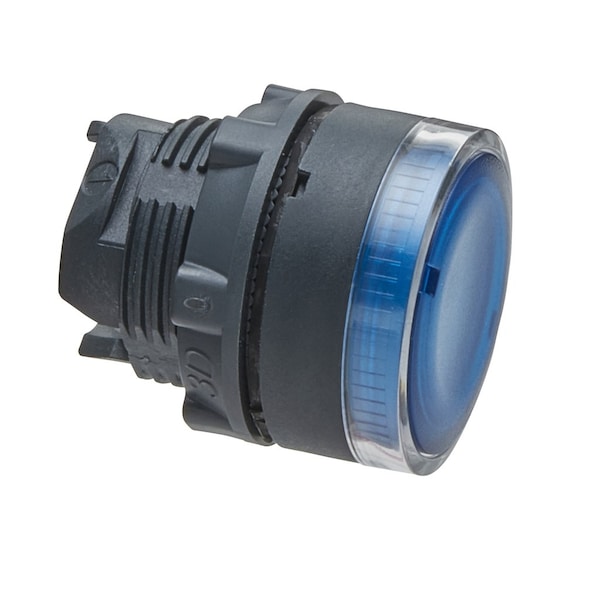

Schneider Electric Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Blue ZB5AW36 - main

Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Blue

  • Mfr # ZB5AW36

  • Zoro # G0318394

product price: $17.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW36
Zoro #
G0318394
UPC #
785901374657
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
32 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Overall Depth
1.26 in
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Color
Blue
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
IP Rating
IP66
Basic Material
Plastic
Lamp Module Type
No Lamp Module Included
Type of Operator
Flush Button
NEMA Rating
13, 4X
Bezel
Plastic
Lamp Voltage
Dependent on Module Used
Bezel Material
Plastic
Number of Operators
1
Features
Snap-Fit Assembly, Withstands Harsh Environments
Series
XB5
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Product Or Component Type
head for illuminated push-button
Device Presentation
basic sub-assemblies
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Profile
blue flush, unmarked
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Protective Treatment
TC
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
10000000 cycles
Marking
unmarked
Ambient Air Temperature For Operation
-40-55°C
Overvoltage Category
class II IEC 60536
Product Certifications
GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
Ik Degree Of Protection
IK05 EN 50102
Cap/Operator Or Lens Colour
blue
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Additional Information
with plain lens
Group Of Product
flush push BA9s
Device Short Name
ZB5
Head Type
standard
Product Compatibility
BA 9s
Operating Temperature - Maximum
131 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Plastic
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
