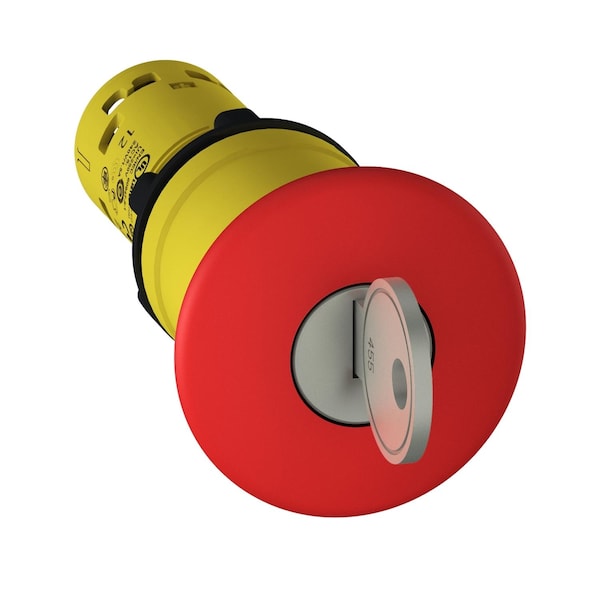

Monolithic emergency stop, Harmony XB7, plastic, red mushroom 40mm, 22mm, latching key release, 2NC

Emergency Stop Push Button

Mushroom Head

Maintained / Momentary

Key

Non-Illuminated

Red

Plastic

Screw Clamp

IEC 60364-5-53, EN/IEC 60204-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/ISO 13850, EN/IEC 60947-1

emergency stop push-button

key 455

(13-14)NC || (21-22)NC

class II IEC 60536

2 NC

4 kV EN/IEC 60947-1

100000 cycles

fixing nut beneath head 2-2.4 N.m

CCC || GOST

5 gn 2-500 Hz)IEC 60068-2-6

round

standard

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

-40-70°C

0.8-1.2 N.m EN 60947-1

mechanical latching

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

key release

snap action

NEMA 12 UL 50 || NEMA 3 UL 50

with EN/IEC 60947-5-1 appendix K

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

250 V 3)EN/IEC 60947-1

Λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4

red mushroom Ø 40 mm, unmarked

4 A cartridge fuse gG EN/IEC 60947-5-1

fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1

15 gn 11 ms) half sine wave acceleration IEC 60068-2-27

-25-70°C

TH

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1

0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 || 1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1

XB7

Harmony XB7
