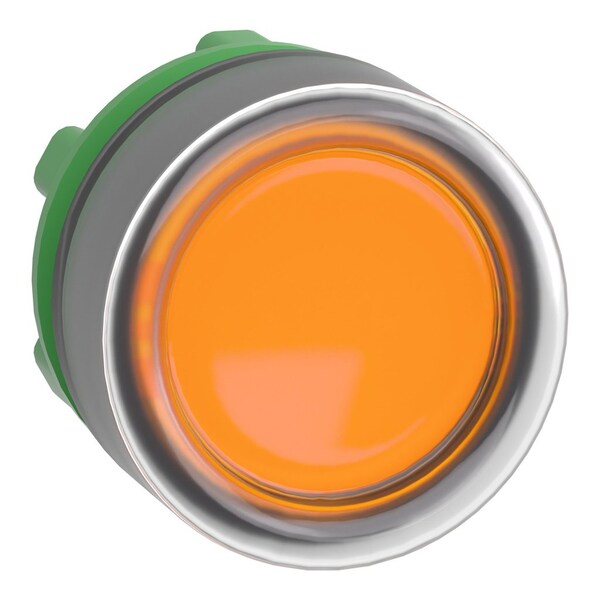

Schneider Electric Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Orange ZB5AW553 - main

Push Button Operator, Flush, Momentary Action, Push Release, Illuminated, Orange

  • Mfr # ZB5AW553

  • Zoro # G2225833

product price: $31.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW553
Zoro #
G2225833
UPC #
785901388258
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
30 mm
Cad Overall Width
30 mm
Cad Overall Depth
37 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.46 in
Overall Width
1.18 in
Overall Height
1.18 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Voltage
Module Not Included
Type of Operator
Flush Booted Button
Bezel
Plastic
Color
Yellow
Lamp Module Type
No Lamp Module Included
IP Rating
IP66
Basic Material
Plastic
Lamp Voltage
Dependent on Module Used
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Bezel Material
Plastic
Features
Snap-Fit Assembly, Withstands Harsh Environments, Prevent Dirt and Contaminants
Series
XB5
Number of Operators
1
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Product Or Component Type
head for illuminated push-button
Mechanical Durability
10000000 cycles
Device Presentation
basic sub-assemblies
Shape Of Signaling Unit Head
round
Device Short Name
ZB5
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
GL || DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || BV
Protective Treatment
TC
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Additional Information
clear boot
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Cap/Operator Or Lens Colour
orange
Product Compatibility
universal LED
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Overvoltage Category
class II IEC 60536
Group Of Product
flush push integral LED
Ik Degree Of Protection
IK05 EN 50102
Marking
unmarked
Operator Profile
orange flush, unmarked
Ambient Air Temperature For Operation
-40-70°C
Product Type
Push Button Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
1
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Booted Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
