Item
Push Button Operator
Action
Momentary / Momentary
Operator Illumination
Illuminated
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Replacement Lamp
Mfr. No 25501-01-027
Lamp Module Type
Full Voltage
IP Rating
IP66, IP69, IP69K
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/Q600
Legend/Background Color
White/Green, White/Red
Includes
120V Light, White I on Green Background and White O on Red Background
Type of Operator
(1) Extended Button, (1) Flush Button, (1) Light
Lamp Module Voltage
120V AC
NEMA Rating
1, 12, 3, 4, 4X
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Multihead Operators
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Opening
with EN/IEC 60947-5-1 appendix K
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Ip Degree Of Protection
IP66 IEC 60529 || IP69 IEC 60529 || IP69K
Operators Description
green ''I'' - red ''O''
Light Source Colour
white
Resistance To Fast Transients
2 kV IEC 61000-4-4
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL Listed || GL || LROS (Lloyds register of shipping) || DNV || BV || CSA
Contacts Material
silver alloy (Ag/Ni)
Ik Degree Of Protection
IK05 IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Surge Withstand
1 kV IEC 61000-4-5
Overvoltage Category
class II IEC 61140
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Operator Profile
1 flush - 1 projecting push-buttons - 1 central pilot light, green flush, I white) || red projecting, O white)
Contacts Type And Composition
1 NO + 1 NC
Product Or Component Type

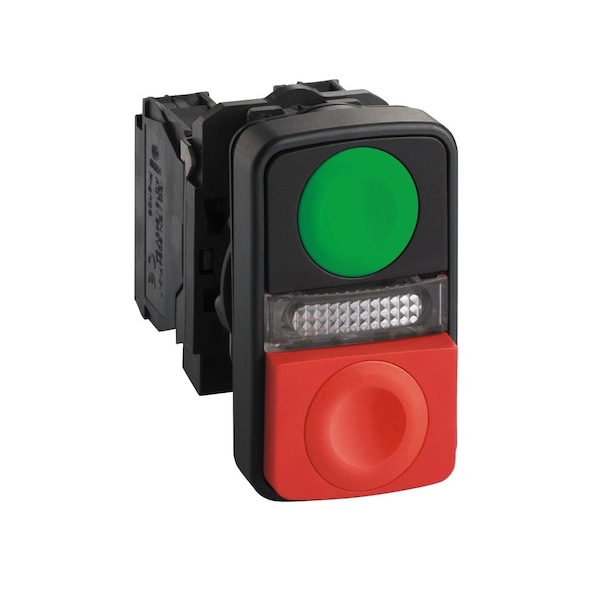

illuminated double-headed push-button
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Light Source
protected LED
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Supply Voltage Limits
94-132 V AC
Device Presentation
complete product
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electromagnetic Emission
class B IEC 55011
Mechanical Durability
1000000 cycles
Tightening Torque
0.8-1.2 N.m EN 60947-1
Fixing Collar Material
plastic
Terminals Description Iso N°1
(11-12)NC || (13-14)NO
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Current Consumption
14 mA
Ambient Air Temperature For Operation
-40-70°C
Contacts Usage
standard contacts
Shape Of Signaling Unit Head
rectangular
Contact Operation
slow-break
[Us] Rated Supply Voltage
110 to 120 V AC 50/60 Hz
Mechanical Operating Durability
1.00 x 10^6
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Lamp Voltage - Maximum
120 V AC
Legend Background Color
Green/Red
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC/DC
Number of Indicator Lights
0
NEMA Enclosure Rating
13, 4X
