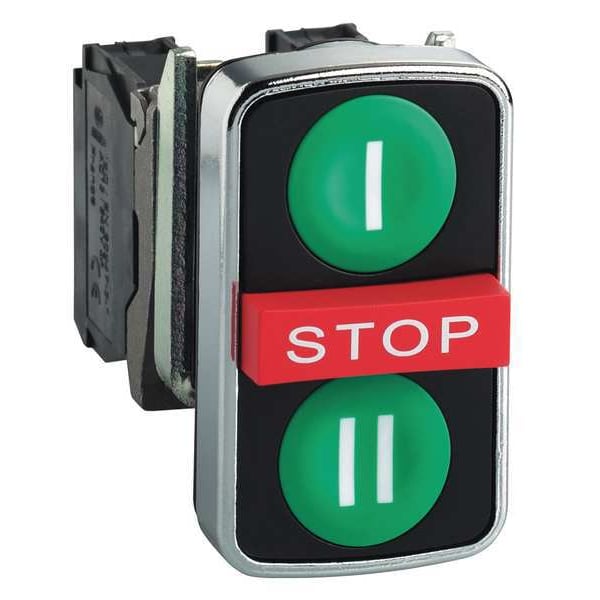

Push Button Operator, Flush, Momentary / Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # XB4BA731327

  • Zoro # G4536804

product price:
$
129.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XB4BA731327
Zoro #
G4536804
UPC #
094720873068
Country of Origin
Korea, Republic of
Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Shape
Rectangular
Legend/Background Color
White/Green, White/Red
Contact Rating
10A @ 600V AC
Legend
Stop II
IP Rating
IP69, IP69K
NEMA Contact Rating Designation
A600/Q600
NEMA Rating
1, 12, 3, 4, 4X
Contact Form
1NO/1NC
Type of Operator
(1) Extended Button, (2) Flush Buttons
Series
XB4
Number of Operators
3
Legend Color
White
Product Type
Multihead Operators
NEMA Enclosure Rating
13, 4X
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Legend Background Color
Green/Red
Mechanical Operating Durability
1.00 x 10^6
Bezel Material
Chrome
Operator Voltage Rating - Maximum
600 V AC/DC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operating Temperature - Minimum
-13 Degrees F
Ip Degree Of Protection
IP69K IEC 60529 || IP69 IEC 60529
Positive Opening
with EN/IEC 60947-5-1 appendix K
Device Presentation
complete product
Contacts Material
silver alloy (Ag/Ni)
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Mechanical Durability
1000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Ambient Air Temperature For Storage
-40-70°C
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Operator Profile
red projecting, STOP white) || green flush, I white) || green flush, II white), 2 flush - 1 central projecting STOP push-buttons
Operators Description
green ''I'' - green ''II'' - red ''STOP''
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ik Degree Of Protection
IK06 IEC 50102
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Usage
standard contacts
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type
triple-headed push-button
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Head Type
standard
Contact Operation
slow-break
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Fixing Collar Material
zamak
Shape Of Signaling Unit Head
rectangular
Product Certifications
BV || UL Listed || CSA || GL || LROS (Lloyds register of shipping) || DNV
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
XB4
Contacts Type And Composition
1 NO + 1 NC + 1 NO
Electrical Shock Protection Class
class I IEC 61140
Number of Heads
3

Description

Multihead Operator, 22 mm, Momentary/Momentary/Momentary Action, (1) Extended Button, (2) Flush Buttons Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Green/Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 3, NEMA Rating 1, 12, 3, 4, 4X, IP Rating IP69, IP69K, Legend Stop II, Legend/Background Color White/Green, White/Red
