Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Contact Rating
10A @ 600V AC
Shape
Rectangular
Contact Form
2NO/1NC
Includes
White I on Green Background and White II on Green Background
Legend
I/Stop/II
IP Rating
IP67, IP69, IP69K
Type of Operator
(1) Extended Button, (2) Flush Buttons
NEMA Rating
1, 12, 3, 4, 4X
Legend/Background Color
White/Green, White/Red
NEMA Contact Rating Designation
A600/Q600
Series
XB5
Number of Operators
3
Legend Color
White
Product Type
Multihead Operators
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
NEMA Enclosure Rating
13, 4X
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Mechanical Operating Durability
1.00 x 10^6
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Legend Background Color
Green/Red
Operator Voltage Rating - Maximum
600 V AC/DC
Operator Material
Plastic
Bezel Material
Plastic
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Contacts Material
silver alloy (Ag/Ni)
Device Short Name
XB5
Fixing Collar Material
plastic
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Head Type
standard
Operators Description
green ''I'' - green ''II'' - red ''STOP''
Ik Degree Of Protection
IK05 IEC 50102
Contacts Usage
standard contacts
Product Or Component Type
triple-headed push-button
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Operator Profile
red projecting, STOP white) || green flush, II white), 2 flush - 1 central projecting STOP push-buttons
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Shape Of Signaling Unit Head
rectangular
Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Connections - Terminals
screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Presentation
complete product
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Operation
-25-70°C
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Contact Operation
slow-break
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Contacts Type And Composition
2 NO + 1 NC
Positive Opening
with EN/IEC 60947-5-1 appendix K
Electrical Shock Protection Class
class II IEC 61140
Number of Heads
3
Product Certifications
LROS (Lloyds register of shipping) || UL Listed || BV || DNV || GL || CSA
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
Description

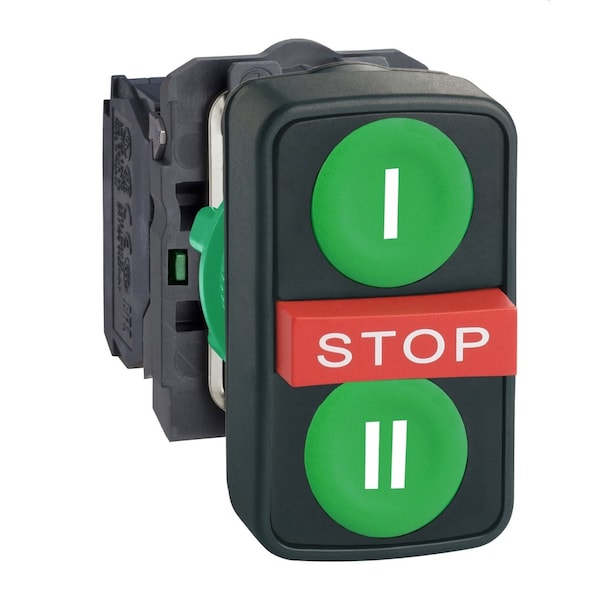

Multihead Operator, 22 mm, Momentary/Momentary/Momentary Action, (1) Extended Button, (2) Flush Buttons Type of Operator, Head Material Plastic, Contact Form 2NO/1NC, Bezel Plastic, Color Green/Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 3, NEMA Rating 1, 12, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Legend I/Stop/II, Legend/Background Color White/Green, White/Red
