  15. Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

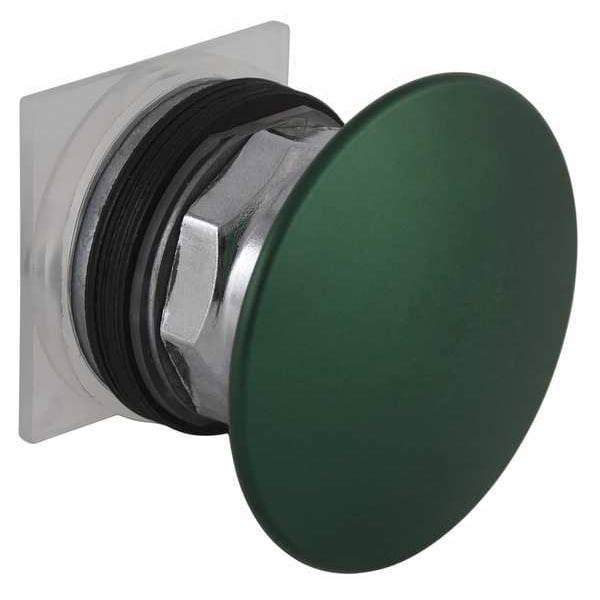

Schneider Electric Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated 9001KR25GM - main

Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # 9001KR25GM

  • Zoro # G4558556

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR25GM
Zoro #
G4558556
UPC #
785901483342
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
60 mm
Size
30 mm
Cad Overall Width
60 mm
Cad Overall Height
60 mm
Cad Overall Depth
70 mm
Mounting Diameter
30 mm
Overall Depth
2.76 in
Manufacturer Warranty Length
18 mo
Overall Width
2.36 in
Overall Height
2.36 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Standards
Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
Basic Material
Metal
Bezel Material
Metal
Type of Operator
60mm Mushroom Head
Accessory Group
Type K and SK Accessories
Color
Green
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Number of Operators
1
Series
9001K
Product Compatibility
contact block 9001KA..
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Shape Of Signaling Unit Head
round
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn IEC 60068-2-27
Ambient Air Temperature For Operation
-25-70°C
Ip Degree Of Protection
IP66 IEC 60529
Contacts Type And Composition
without contact block
Mechanical Durability
5000000 cycles
Operator Additional Information
screw-on metal with set screw
Operator Profile
green mushroom Ø 60 mm, unmarked, mushroom Ø 60 mm
Cap/Operator Or Lens Colour
green
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL 508 || NEMA
Device Presentation
basic element
Operating Position
any position
Device Short Name
9001K
Overvoltage Category
class II IEC 61140
Protective Treatment
TC
Product Or Component Type
head for push-button
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Operator Material
Metal
Operating Temperature - Maximum
158 Degrees F

Description

Mushroom Head Push Button, 30 mm, Momentary, Type of Operator 60mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
