  15. Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red

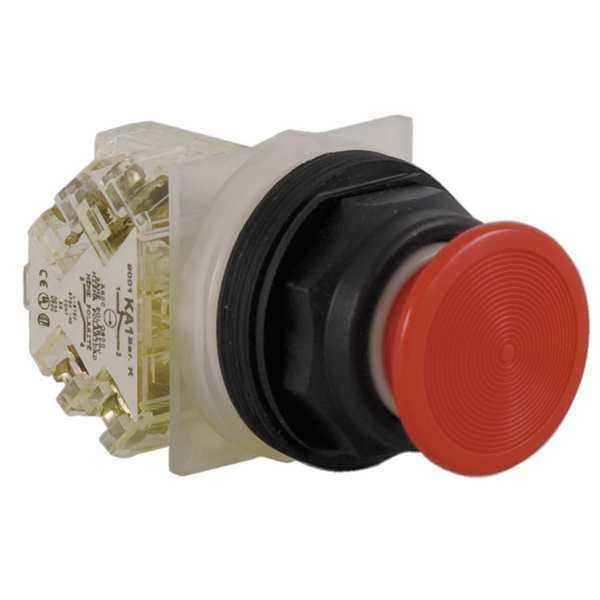

Schneider Electric Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red 9001SKR4RH13 - main

Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated, Red

  • Mfr # 9001SKR4RH13

  • Zoro # G6587497

product price: $131.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR4RH13
Zoro #
G6587497
UPC #
785901042815
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
35 mm
Size
30 mm
Manufacturer Warranty Length
18 mo
Mounting Diameter
30 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Type of Operator
35mm Mushroom Head
Bezel
Corrosion Resistant Thermoplastic
Contact Form
SPDT
Material
Plastic
Number of Operators
1
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
IP Rating
IP66
NEMA Contact Rating Designation
A600/Q600
Contact Rating
10A @ 600V AC
Basic Material
Plastic
Color
Red
Features
Finger-Safe Terminals
Bezel Material
Plastic
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
9001SK
Product Type
Push Button Operators
Operating Temperature - Maximum
140 Degrees F
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Operating Temperature - Minimum
-22 Degrees F
Number of Indicator Lights
0
Mechanical Operating Durability
5.00 x 10^6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Ip Degree Of Protection
IP66
Product Or Component Type
push-button
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Contacts Type And Composition
1 C/O
Contact Operation
standard
Mechanical Durability
5000000 cycles
Cap/Operator Or Lens Colour
red
Device Short Name
9001SK
Device Presentation
complete product
Operator Profile
mushroom Ø 35 mm, red mushroom Ø 35 mm
Operator Additional Information
snap-in plastic

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 35mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
