  15. Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

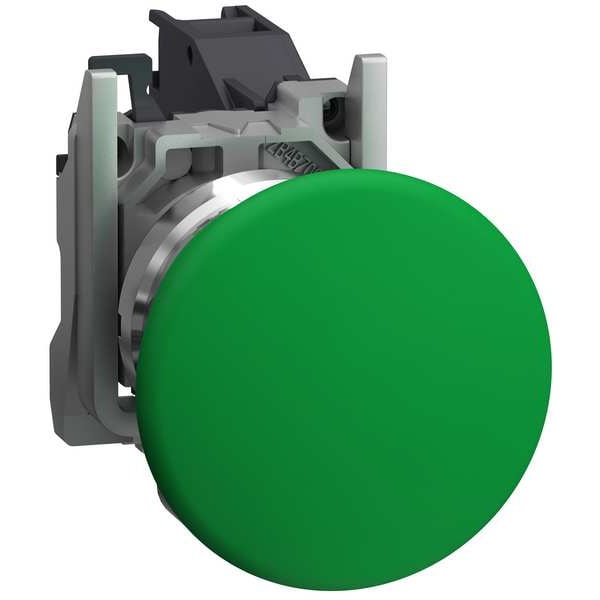

Schneider Electric Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated XB4BC31GEX - main

Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # XB4BC31GEX

  • Zoro # G9233723

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BC31GEX
Zoro #
G9233723
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Depth
96.5 mm
Width
46.2 mm
Height
30 mm
Size
22 mm
Overall Width
1.82 in
Overall Height
1.18 in
Overall Depth
3.8 in
Mounting Diameter
22 mm
Embedding Depth
58 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, INERIS 04ATEX9004U, REACH, RoHS, UL 60079-0, UL 60079-1, UL 60079-31, WEEE
Color
Green
Contact Rating
10 A @ 415V AC
Bezel Material
Chrome
NEMA Contact Rating Designation
A600/Q300
IP Rating
IP65
Bezel
Metal
Type of Operator
Mushroom Head Push Button
Contact Form
1NO
Number of Operators
1
Safety Rating
Zone 2
Series
XB4
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
415 V AC
Operating Temperature - Maximum
167 Degrees F
Mechanical Operating Durability
5.00 x 10^6
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Minimum
-4 Degrees F
Product Type
Push Button Operators
Operating Travel
1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
Contacts Type And Composition
1 NO
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Marking
Ex db eb IIC Gb || Ex tb IIIC Db || II 2 GD
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Mechanical Durability
5000000 cycles
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation
-20-75°C
Fixing Collar Material
zamak
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Gas Zone
zone 1 - 2
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Product Or Component Type
complete push-button
Dust Zone
zone 21 - 22
Product Certifications
INERIS 04ATEX9004U
Protective Treatment
TH
Shape Of Signaling Unit Head
round
Contact Operation
slow-break
[Ui] Rated Insulation Voltage
415 V
Operating Force
3.962 N
Ip Degree Of Protection
IP65 IEC 60529
Positive Opening
without
Ambient Air Temperature For Storage
-40-70°C
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
Device Short Name
XB4
Operator Profile
green mushroom Ø 40 mm

Description

Mushroom Head Push Button, 22 mm, Momentary Action, Mushroom Head Push Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Metal, Color Green, Contact Rating 10 A @ 415V AC, NEMA Contact Rating Designation A600/Q300, Number of Operators 1, IP Rating IP65, Legend Not Applicable
