  15. Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Black

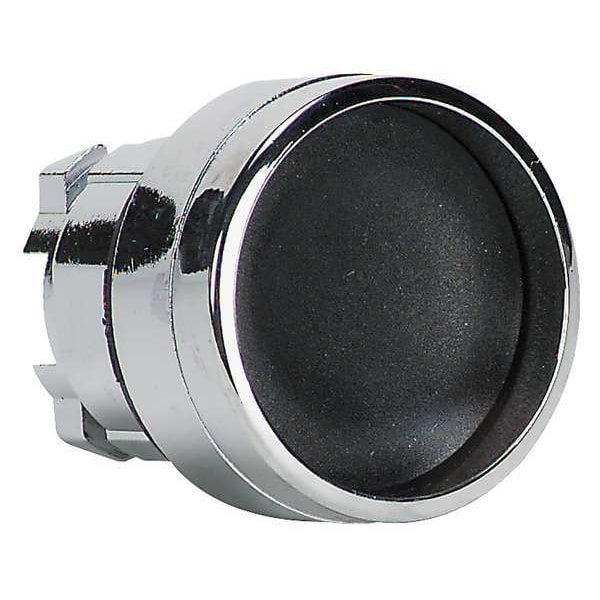

Schneider Electric Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Black ZB4BA26 - main

Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Black

  • Mfr # ZB4BA26

  • Zoro # G1754873

product price: $29.09
/ea

Key Features

Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA26
Zoro #
G1754873
UPC #
785901354253
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
31 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Overall Depth
1.22 in
Overall Height
1.14 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
1, 13, 2, 3, 4, 4X
Accessory Group
B
Bezel Material
Metal
Type of Operator
Recessed Button
IP Rating
IP66
Basic Material
Metal
Color
Black
Number of Operators
1
Features
Snap-Fit Assembly, Clear Boot
Series
XB4
Product Type
Push Button Operators
Operator Profile
black recessed, unmarked
Head Type
standard
Overvoltage Category
class I IEC 60536
Product Certifications
LROS (Lloyds register of shipping) || DNV || GL || BV || UL Listed || CSA
Ik Degree Of Protection
IK06 IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
10000000 cycles
Shape Of Signaling Unit Head
round
Product Or Component Type
head for non-illuminated push-button
Device Short Name
ZB4
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Protective Treatment
TH
Device Presentation
basic element
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Additional Information
high guard
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operator Material
Metal
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Indicator Lights
0
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Recessed Push Button, 22 mm, Momentary, Type of Operator Recessed Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Black, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
