  15. Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Yellow

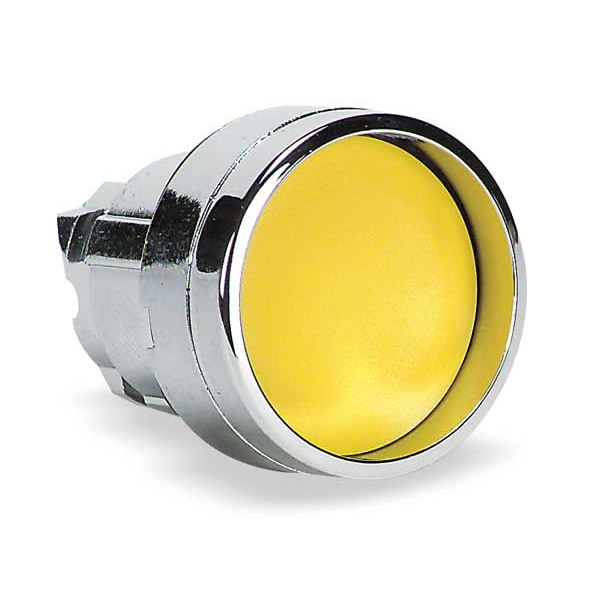

Schneider Electric Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Yellow ZB4BA56 - main

Push Button Operator, Recessed, Momentary Action, Not Applicable Release, Non-Illuminated, Yellow

  • Mfr # ZB4BA56

  • Zoro # G2405076

product price: $28.25
/ea

Key Features

Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA56
Zoro #
G2405076
UPC #
785901381839
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
31 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Overall Height
1.14 in
Overall Width
1.14 in
Overall Depth
1.22 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
1, 13, 2, 3, 4, 4X
Basic Material
Metal
Accessory Group
B
IP Rating
IP66
Color
Yellow
Type of Operator
Recessed Button
Bezel Material
Metal
Number of Operators
1
Features
Mechanical Latching
Series
XB4
Product Type
Push Button Operators
Head Type
standard
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Or Component Type
head for non-illuminated push-button
Protective Treatment
TH
Ik Degree Of Protection
IK06 IEC 50102
Mechanical Durability
10000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile
yellow recessed, unmarked
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Product Certifications
GL || BV || LROS (Lloyds register of shipping) || CSA || DNV || UL Listed
Device Presentation
basic element
Device Short Name
ZB4
Overvoltage Category
class I IEC 60536
Shape Of Signaling Unit Head
round
Operator Additional Information
high guard
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation
-40-70°C
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Recessed Push Button, 22 mm, Momentary, Type of Operator Recessed Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Yellow, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
