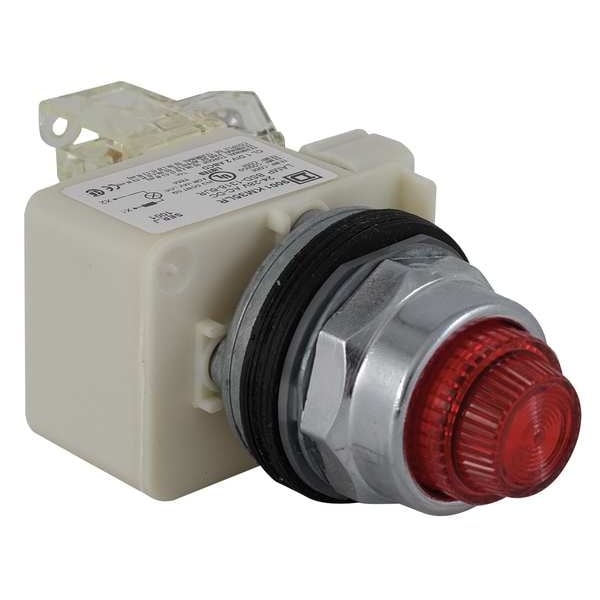

Schneider Electric Push to Test Pilot Light, Red, LED 9001KT35LRR31 - main

Push to Test Pilot Light, Red, LED

  • Mfr # 9001KT35LRR31

  • Zoro # G1509067

product price: $179.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Red
Lamp Type
LED
Type of Operator
Spring Return
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KT35LRR31
Zoro #
G1509067
UPC #
785901036111
Country of Origin
Mexico

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Overall Width
2.13 in
Overall Depth
1.65 in
Overall Height
4.1 in
Manufacturer Warranty Length
18 mo

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Red
Lamp Type
LED
Type of Operator
Spring Return
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
1 C/O
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Fresnel
Lamp Module Type
Full Voltage
Basic Material
Metal
IP Rating
IP66
Includes
Light Module and LED Lamp
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Body Material
Zinc Die Cast
Lamp Voltage
24V AC/DC
Standards
REACH, RoHS, UL 508, WEEE
Body Finish
Chrome Plated
Lamp Voltage - Maximum
24 V AC/DC
Includes Lens
Lens Included
Lamp Color
Red
Voltage Rating - Maximum
28 V AC/DC
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Lens Color
Red
Includes Push-To-Test
Push-To-Test Included
Includes Lamp Module
Lamp Module Included
Series
9001K

Description

Pilot Light, Voltage 24V AC/DC, Color Red, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
