  15. Pushbutton Enclosure, 22mm, 4 Hole, Plastic

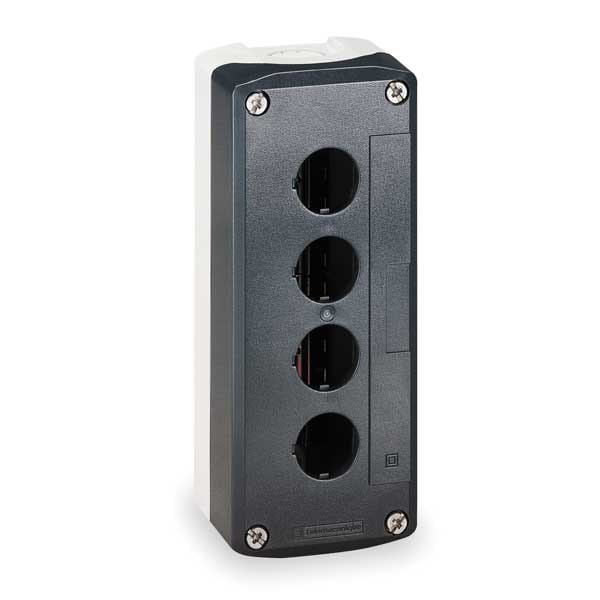

Schneider Electric Pushbutton Enclosure, 22mm, 4 Hole, Plastic XALD04H7 - main

Pushbutton Enclosure, 22mm, 4 Hole, Plastic

  • Mfr # XALD04H7

  • Zoro # G2748505

product price: $66.35
/ea

Key Features

Material
Polycarbonate
Height
6.46 in
Color
Gray
Width
2.68 in
Number of Columns
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALD04H7
Zoro #
G2748505
UPC #
785901115007
Country of Origin
Czechia

Dimensions

Height
6.46 in
Width
2.68 in
Conduit Size
1/2 in
Depth
2 in
Hole Size
22 mm
Dimensions
6.46 in H x 2.68 in W x 2.00 in D
Compatible Conduit Size - Maximum
14 mm
Overall Height
6 9/16 in
Panel Cutout Diameter
22 mm
Overall Depth
2 1/16 in
Overall Width
2 11/16 in

Details

Item
Push Button Enclosure
Material
Polycarbonate
Color
Gray
Number of Columns
1
NEMA Rating
1, 12, 13, 4X
For Use With
ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head
Number of Holes
4
Standards
RoHS
Electrical Composition Code
MR1 || SR1 || SR2 || SF2 || MF2 || MF1 || PF2 || PR1 || PF1 || SF1
Ik Degree Of Protection
IK03 EN 50102
Ambient Air Temperature For Storage
-40-70°C
Product Destination
for XB5 Ø 22 mm control and signalling units
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Number Of Vertical Rows
4
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Protective Treatment
TH
Main Group
4 cut-outs
Group Of Product
UL-CSA grey
Device Short Name
XALD
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Number Of Horizontal Rows
1
Mounting Of Block
front mounting || rear mounting
Colour Of Base Of Enclosure
light grey RAL 7035)
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
CSA || UL
Product Or Component Type
empty control station
Overvoltage Category
class II IEC 60536
Number Of Cut-Out
4 cut-outs
Colour Of Cover
dark grey RAL 7016)
NEMA Enclosure Rating
13, 4X
Compatible with Series
XB5

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 1, 12, 13, 4X, Conduit Size 1/2 in, Dimensions 6.46 in H x 2.68 in W x 2.00 in D, Hole Size 22 mm, Material Polycarbonate, Height 6.46 in, Width 2.68 in, Depth 2 in, Color Gray, For Use With ZB5A Operators and Plastic 22mm Pushbutton or Pilot Light Head, Standards RoHS
