  15. Pushbutton Head, 22 mm, Green

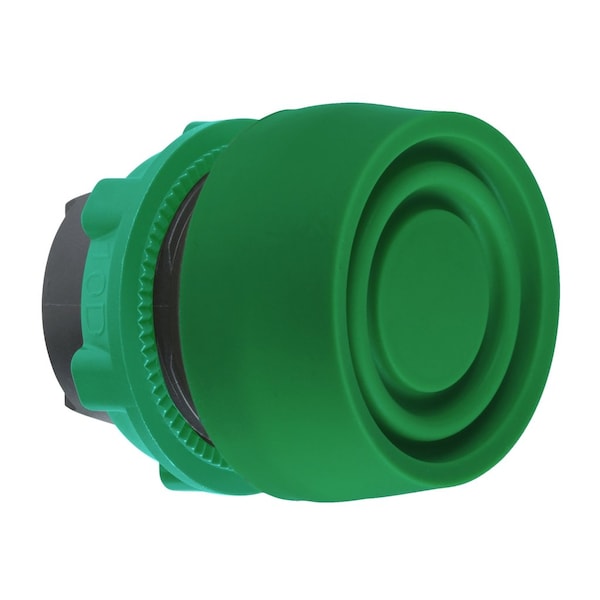

Schneider Electric Pushbutton Head, 22 mm, Green ZB5AP3S - main

Pushbutton Head, 22 mm, Green

  • Mfr # ZB5AP3S

  • Zoro # G3466182

product price: $24.59
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AP3S
Zoro #
G3466182
UPC #
785901356318
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
33 mm
Cad Overall Width
30 mm
Mounting Diameter
22 mm
Cad Overall Height
30 mm
Overall Depth
1.3 in
Overall Height
1.18 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Yellow
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
IP Rating
IP66
Color
Green
Type of Operator
Flush Button
Number of Operators
1
Basic Material
Plastic
Bezel Material
Plastic
Legend/Background Color
No Legend
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Series
XB5
Product Type
Push Button Operators
Product Or Component Type
head for non-illuminated push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Overvoltage Category
class II IEC 60536
Head Type
standard
Device Short Name
ZB5
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
BV || DNV || CSA || LROS (Lloyds register of shipping) || UL Listed || GL
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Product Compatibility
legend holder
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Operator Additional Information
coloured boot
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
green flush, unmarked
Ik Degree Of Protection
IK03 IEC 50102
Protective Treatment
TH
Mechanical Durability
10000000 cycles
Ambient Air Temperature For Operation
-40-70°C
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color No Legend, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
