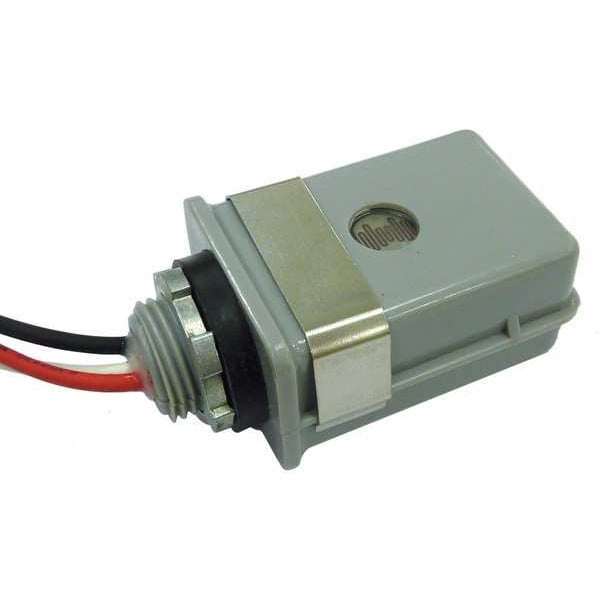

Dayton Incandescent Photocontrol, 1,800 W, Gray 26WA92 - main

Incandescent Photocontrol, 1,800 W, Gray

  • Mfr # 26WA92

  • Zoro # G8559503

product price:  $10.19
/ea

Key Features

Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
9.2 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
1,800 W
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
26WA92
Zoro #
G8559503
UPC #
190735210949
Country of Origin
China

Dimensions

Length
2 3/8 in
Width
1 3/8 in
Depth
1 3/8 in
Manufacturers Warranty Length
5 yr
Overall Height
2.38 in
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
9.2 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
1,800 W
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Includes
Lock Nut, Washer Gasket
Enclosure Type
Raintight
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Setting
Dusk to Dawn
Description/Special Features
Built in Delay
Contact Form
SPST
Standards
UL Listed
Off Illumination - Maximum
60 fc
Mounting Style
1/2 in Conduit, Stem
On Illumination - Maximum
20 fc
Operating Temperature - Maximum
158 Degrees F
Features
Built-In Delay
On Illumination - Minimum
10 fc
Operating Temperature - Minimum
-40 Degrees F
Off Illumination - Minimum
30 fc

Description

Photocontrol, Mounting 1/2 in Male Pipe Thread, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 9.2 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/8 in, Width 1 3/8 in, Depth 1 3/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL Listed, Includes Lock Nut, Washer Gasket
