Shop SCHNEIDER ELECTRIC

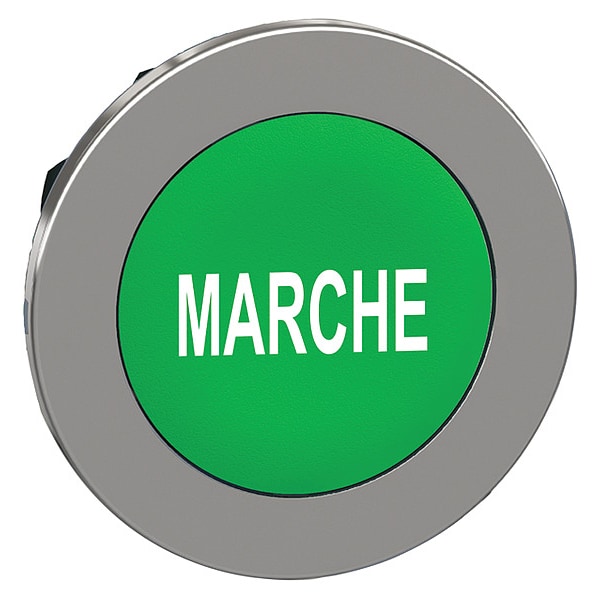

Pushbutton Head, 30 mm, Green, White

  • Mfr # ZB4FA342

  • Zoro # G3462436

product price:
$
13.89
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZB4FA342
Zoro #
G3462436
UPC #
-
Country of Origin
Korea, Republic of
Item
Push Button Head
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Connection Type
Screw-On
IP Rating
IP66, IP67, IP69, IP69K
Bezel Material
chromium plated metal
Legend
Marche
For Use With
Body Sub-assembly ZB4BZ Series
Color
Green, White
Illuminated / Non-Illuminated
Non-Illuminated
Basic Material
Metal
Legend/Background Color
White/Green
Legend Color
White
Compatible Operator Illumination
Non-Illuminated
Compatible with Series
XB4
Compatible with Brand
Schneider
NEMA Enclosure Rating
13, 4, 4X
Head Style
Flush
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Operator Profile
green flush, MARCHE white)
Protective Treatment
TH
Product Certifications
UL Listed || CSA || CCC || EAC
Device Short Name
ZB4F
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Ik Degree Of Protection
IK06 IEC 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Type Of Operator
spring return
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Head Type
built-in-flush
Device Presentation
basic element
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Product Or Component Type
head for non-illuminated push-button
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
class I IEC 60536

Description

Push Button Head, Color Green, White, For Use With Body Sub-assembly ZB4BZ Series, Size 30 mm, Basic Material Metal, Non-Illuminated, Head Material Metal, Connection Type Screw-On, IP Rating IP66, IP67, IP69, IP69K, Legend Marche, Legend/Background Color White/Green, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
