- Item

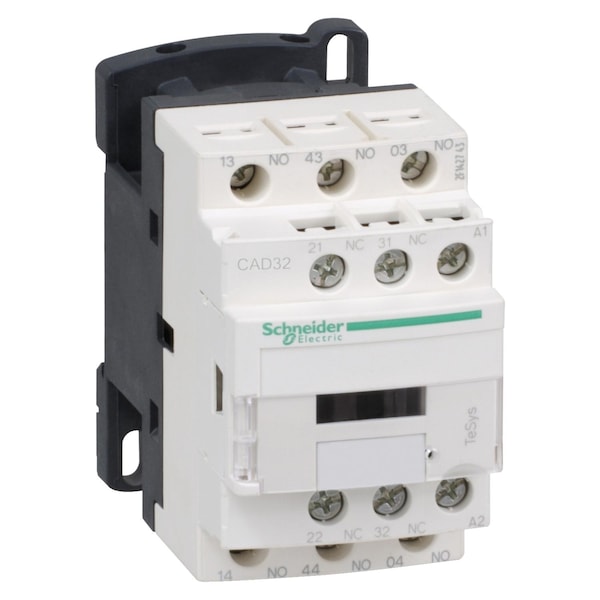

- IEC Control Relay
- Auxiliary Contact Form
- 2NC/3NO
- Maximum Voltage Rating
- 690V AC
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
- Pole Contact Composition
- 3 NO + 2 NC
- Minimum Switching Current
- 5 mA
- Insulation Resistance
- > 10 MOhm
- Inrush Power In W
- 2.4-2.4 W 20°C)
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Ambient Air Temperature For Storage
- -60-80°C
- Hold-In Power Consumption In W
- 2.4-2.4 W 20°C
- Maximum Operating Rate
- 180 cyc/mn
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5 to 300 Hz IEC 60068-2-6
- Control Circuit Type
- DC low consumption
- Connections - Terminals
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
- Non-Overlap Time
- 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
- Utilisation Category
- AC-15 || DC-13 || AC-14
- Associated Fuse Rating
- 10 A gG IEC 60947-5-1
- [Uc] Control Circuit Voltage
- 24 V DC
- Range
- TeSys || TeSys Deca
- Device Short Name
- CAD
- Product Name
- TeSys CAD
- Time Constant
- 40 ms
- Minimum Switching Voltage
- 17 V
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- Ambient Air Temperature For Operation
- -40-60°C || 60-70°C with derating
- Tightening Torque
- 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
- Operating Time
- 65 to 88 ms coil energisation and NO closing || 14 to 25 ms coil de-energisation and NO opening || 57 to 77 ms coil energisation and NC opening || 28 to 42 ms coil de-energisation and NC closing
- Product Or Component Type
- control relay
- Contactor Application
- control circuit
- Protective Treatment
- TH IEC 60068
- Control Circuit Voltage Limits
- 0.1 to 0.25 Uc -40-70°C drop-out DC || 0.7 to 1.25 Uc -40-60°C operational DC || 1 to 1.25 Uc 60-70°C operational DC
- Mechanical Durability
- 30 Mcycles
- Rated Operational Voltage
- Less than or Equal to 690 V AC 25 to 400 Hz
- Rated Insulation Voltage
- 600 V UL; 600 V CSA; 690 V IEC 60947-5-1
- Rated Short Time Withstand Current
- 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C))
- IP Rating
- IP2X
- Mounting Style
- plate || rail
