Shop TELEMECANIQUE SENSORS

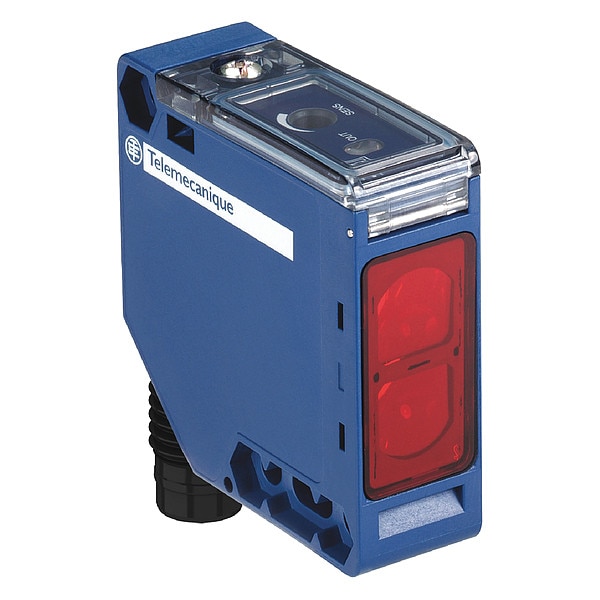

Multimode Photoelectric Sensor, M12, Rectangular, NPN and PNP

  • Mfr # XUK0AKSAM12

  • Zoro # G0653865

product price:  $141.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Multimode
Electrical Connection
M12
Height
50 mm
Style
Rectangular
Width
18 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XUK0AKSAM12
Zoro #
G0653865
UPC #
785901840541
Country of Origin
Indonesia

Dimensions

Height
50 mm
Width
18 mm
Depth
50 mm
Overall Height
50 mm
Overall Depth
50 mm
Overall Width
18 mm

Details

Item
Photoelectric Sensor
Sensing Method
Multimode
Electrical Connection
M12
Style
Rectangular
Material
plastic
IP Rating
IP65
Output Circuit Type
NPN and PNP
Output Circuit Number of Wires
3
DC Voltage Rating
12-24V DC
Standards
CE, CSA Certified, UL Listed
Features
Scratch-Resistant Lens, Double Insulation, PBT Case
Response Time
2 msec
Body Material
Plastic
Current Consumption
<= 35 mA no-load
Enclosure Material
PBT
Electronic Sensor Type
photo-electric sensor
Series Name
general purpose multimode
Maximum Delay Response
2 ms
Output Type
solid state
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Add On Output
with alarm output, <= 50 mA overload and short-circuit protection
Sensor Name
XUK
Maximum Voltage Drop
<1.5 V closed state)
Type Of Output Signal
discrete
Sensor Design
compact 50 x 50
[Sn] Nominal Sensing Distance
4-4 m polarised reflex need reflector XUZC50 || 30-30 m thru beam need a transmitter XUK0AKSAM12T || 0.28-0.28 m diffuse with background suppression || 0.8-0.8 m diffuse
Ambient Air Temperature For Operation
-25-55°C
Ambient Air Temperature For Storage
-40-70°C
Maximum Sensing Distance
35 m thru beam || 0.28 m diffuse with background suppression || 1.2 m diffuse || 5.7 m polarised reflex
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Maximum Delay First Up
200 ms
Maximum Delay Recovery
2 ms
Switching Frequency
250 Hz
Lens Material
PMMA
Supply Circuit Type
DC
Status Led
1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Detection System
multimode
Setting-Up
self-teaching
Emission
infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Sensing Distance - Maximum
35 m
Operating Temperature - Maximum
131 Degrees F
Number of Pins
4
Series
XUK
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
100 mA
Electrical Installation Type
Direct Connector

Description

Photoelectric Sensor
