  13. Relay Socket, 250VAC, 12A, Rsb+Options, PK10

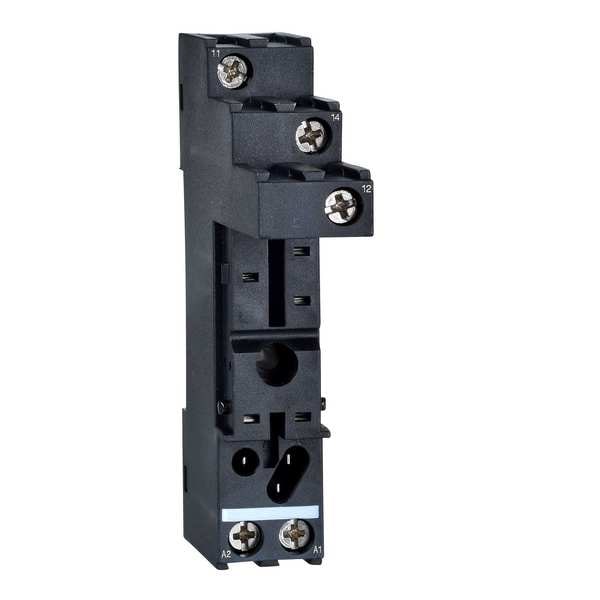

Schneider Electric Relay Socket, 250VAC, 12A, Rsb+Options, PK10 RSZE1S35M - main

Relay Socket, 250VAC, 12A, Rsb+Options, PK10

  • Mfr # RSZE1S35M

  • Zoro # G1012695

product price: $7.95
/ea
Sold in multiples of 10 for $79.50

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Standard
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
Plug In
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSZE1S35M
Zoro #
G1012695
UPC #
-
Country of Origin
China

Dimensions

Depth
2.56 in
Width
0.61 in
Width - Relay Socket
1.65 in
Height - Relay Socket
0.7 in
Depth - Relay Socket
0.85 in
Height
0.7 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Standard
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
Plug In
Electrical Connection - Relay Socket
Screw
Number of Pins - Relay
5
Contact Rating - Relay Socket
12A @ 300V AC
Color
Black
Item
Relay Socket
Number of Pins
5
Standards
CE Certified, CSA Certified, IEC 61984, UL Listed
Socket Type
Elevator, Finger Safe
Status Indicator
None
Mounting Style
DIN Rail
Number of Terminals
5
Contact Terminal Arrangement
Separate
Base Style
Square
Contact Form
SPDT
IP Rating
IP20
Electrical Connection
Screw
Contact Rating (AC)
12 A @ 300V
Pin Shape
Flat
Maximum Operating Temperature
185 Degrees F
Minimum Operating Temperature
-13 Degrees F
Current Rating
12 A
Compatible Relays
Harmony(TM) RSB Series
Product Compatibility
plug-in relay RSB 1 C/O
Shape Of Pin
flat
Marking
CE
Product Certifications
UL || CSA
[Ith] Conventional Free Air Thermal Current
12A
Dielectric Strength
2500 V
[Uimp] Rated Impulse Withstand Voltage
3.6 kV
[Ue] Rated Operational Voltage
< 250 V AC
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Ambient Air Temperature For Operation
-25-85°C
Product Or Component Type
socket
Ambient Air Temperature For Storage
-40-85°C
Overvoltage Category
III
Connections - Terminals
screw connectors, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || screw connectors, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw connectors, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Device Short Name
RSZ
Tightening Torque
< 0.8 N.m M3
Pollution Degree
3

Description

Relay Socket, Base Style Square, Contact Form SPDT, Current Rating 12 A, Electrical Connection Screw, Flat Pin Width Not Applicable, Number of Pins 5, Number of Terminals 5, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color Black, Compatible Relays Harmony(TM) RSB Series, Contact Rating (AC) 12 A @ 300V, Depth 2.56 in, Height 0.7 in, IP Rating IP20, Maximum Operating Temperature 185 Degrees F
