  15. Pushbutton Enclosure, 22mm, 4 Holes, Steel

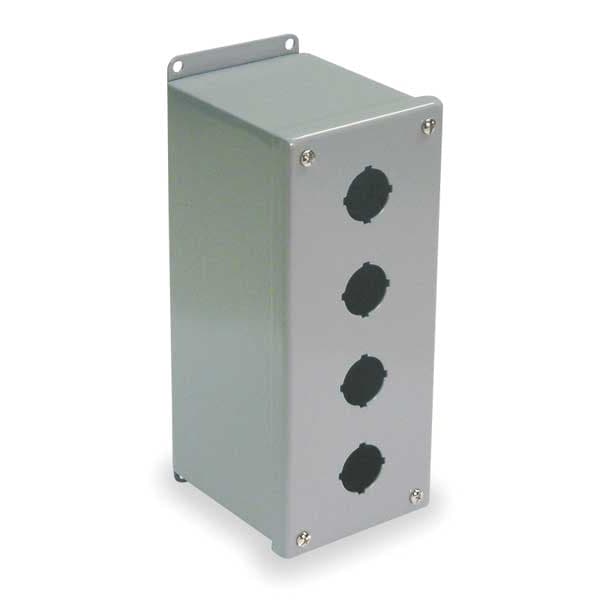

Wiegmann Pushbutton Enclosure, 22mm, 4 Holes, Steel PBGX4 - main

Pushbutton Enclosure, 22mm, 4 Holes, Steel

  • Mfr # PBGX4

  • Zoro # G3408946

product price: $119.99
/ea
Free Shipping & Returns

Key Features

Number of Columns
1
Hole Size
22 mm
Material
Carbon Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBGX4
Zoro #
G3408946
UPC #
786725431885
Country of Origin
United States

Dimensions

Hole Size
22 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
8.88 in H x 2.75 in W x 3.50 in D
Height
8.88 in
Width
2.75 in
Depth
3.5 in
Actual Height
8.880 in
Actual Depth
3.5 in
Actual Width
2.750 in
Overall Height
9 in
Overall Depth
4 in
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided
Overall Width
3 in
Panel Cutout Diameter
22 mm

Details

Item
Push Button Enclosure
Number of Columns
1
Material
Carbon Steel
Number of Holes
4
NEMA Rating
12, 13
Color
Gray
Type
Miniature
Standards
cULus, UL Listed
Mounting Style
External Plates
Includes
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Features
Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Grounding provisions provided.
Listings
UL, CSA
Finish Type
Polyester Powder
Mounting
External Mounting Plates
Mounting Type
External Mounting Plates
Cubic Capacity
108 cu.in
Cover Type
Pushbutton;Screw
UL Listed
Yes
Standard
cULus
Series
PBGX
Construction
Continuously Welded Seams
Certified Listed
cULus
Application
Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water.
NEMA Enclosure Rating
12

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.88 in H x 2.75 in W x 3.50 in D, Hole Size 22 mm, Material Carbon Steel, Height 8.88 in, Width 2.75 in, Depth 3.5 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Miniature, Mounting Style External Plates, Standards cULus, UL Listed
