  13. Rlay Scket, Finger Safe, Square, 14 Pin, 10A

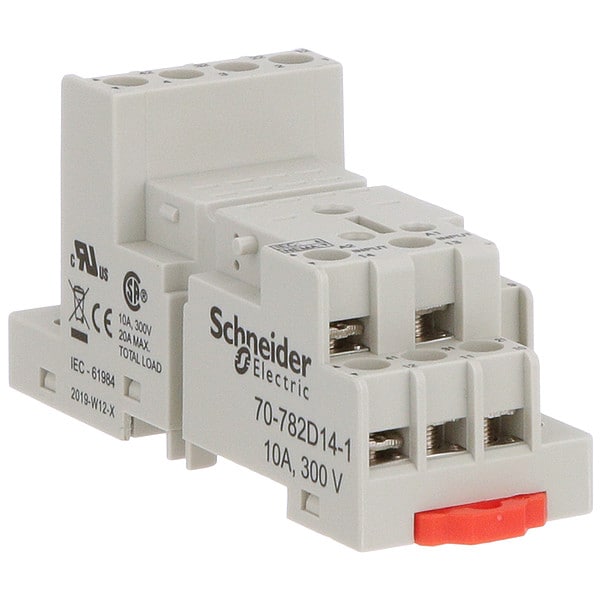

Schneider Electric Rlay Scket, Finger Safe, Square, 14 Pin, 10A 70-782D14-1 - main

Rlay Scket, Finger Safe, Square, 14 Pin, 10A

  • Mfr # 70-782D14-1

  • Zoro # G1625967

product price: $7.25
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-782D14-1
Zoro #
G1625967
UPC #
-
Country of Origin
China

Dimensions

Width
1.18 in
Depth - Relay Socket
3.3 in
Width - Relay Socket
1.18 in
Height - Relay Socket
1.57 in
Depth
3.11 in
Length
3.30"
Height
1.57 in
Flat Pin Width
0.09 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
14
Socket Code
G
Contact Rating - Relay Socket
10A @ 300V AC
Color
White
Socket Type
Standard, Finger Safe
Status Indicator
None
Item
Relay Socket
Voltage
300VAC
Terminals
Screw Clamp
Socket Style
Square
Number of Pins
14
Contact Rating
10A @ 300VAC
Standards
CE Certified, CSA Certified, UL Listed
Mounting
Din Rail
Contact Terminal Arrangement
Mixed
Weight
2.19 oz
Pin Shape
Flat
Electrical Connection
Screw Clamp
Base Style
Square
Number of Terminals
14
IP Rating
IP20
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
158 Degrees F
Mounting Style
DIN Rail
Compatible Relays
782 Series, 792 Series
Contact Form
4PDT
Current Rating
10 A
Contact Rating (AC)
10 A @ 300V
Shape of Screw Head
Combination roundhead
Product Certifications
UL; CSA; CE
Connections Terminals
Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 solid for output; Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 stranded for output
Product Compatibility
relay 792XDX; relay 782XDXH; relay 792XBX; diode 70-BSMD; signalling device 70-BSMLG; suppressor module 70-BSMM
Product Range
Harmony Electromechanical Relays
Contact Composition
4 C/O
Ambient Air Temperature for Operation
-40 to 158°F (-40 to 70°C)
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
[Ue] rated operational voltage
300 V
Product Type
Socket
Tightening Torque
Chassis 0.8 N.m, AWG 14...AWG 12, copper; Screw 0.8 N.m
Flame Retardance
UL94-V0
Fixing Mode
By screw, M3 panel; Clip-on 35 mm symmetrical DIN rail

Description

Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.09 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 782 Series, 792 Series, Contact Rating (AC) 10 A @ 300V, Depth 3.11 in, Height 1.57 in, IP Rating IP20, Maximum Operating Temperature 158 Degrees F
