  13. Rlay Scket, Finger Safe/Elvtr, Squre, 8 Pin

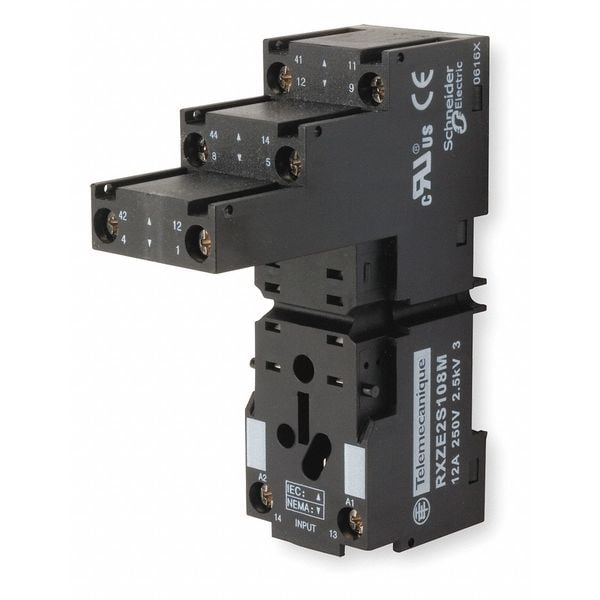

Schneider Electric Rlay Scket, Finger Safe/Elvtr, Squre, 8 Pin RXZE2S108M - main

Rlay Scket, Finger Safe/Elvtr, Squre, 8 Pin

  • Mfr # RXZE2S108M

  • Zoro # G2167216

product price: $9.15
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXZE2S108M
Zoro #
G2167216
UPC #
785901437871
Country of Origin
China

Dimensions

Width
1.06 in
Depth
3.25 in
Height - Relay Socket
2.4 in
Length
3.25"
Width - Relay Socket
1.06 in
Depth - Relay Socket
3.25 in
Height
2.4 in
Flat Pin Width
0.09 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
8
Socket Code
K
Contact Rating - Relay Socket
12A @ 250V AC
Color
Black
Status Indicator
None
Terminals
Box Lug Separate
Item
Relay Socket
Voltage
250VAC
Socket Type
Elevator, Finger Safe
Socket Style
Square
Mounting
Din Rail
Contact Rating
12A @ 250VAC
Standards
CE Certified, CSA Certified, IEC 61984, Lloyd's, UL Listed
Number of Pins
8
Mounting Style
DIN Rail & Surface
Contact Form
DPDT
Minimum Operating Temperature
-40 Degrees F
Current Rating
12 A
Electrical Connection
Screw
Pin Shape
Flat
Number of Terminals
8
Contact Rating (AC)
12 A @ 250V
Maximum Operating Temperature
131 Degrees F
Weight
2.08 oz
IP Rating
IP20
Contact Terminal Arrangement
Separate
Base Style
Square
Compatible Relays
Harmony(TM) RXM Series
Pollution Degree
3
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Connections - Terminals
connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end || connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 20...AWG 14) solid without cable end
Overvoltage Category
III
Marking
CE
[Ith] Conventional Free Air Thermal Current
12A
[Uimp] Rated Impulse Withstand Voltage
4 kV
Device Short Name
RXZ
Product Compatibility
plug-in relay RXM 2 C/O || plug-in relay REXL 2 C/O
[Ue] Rated Operational Voltage
< 250 V
Tightening Torque
< 1 N.m M3
Ambient Air Temperature For Storage
-40-85°C
Dielectric Strength
2500 V
Shape Of Pin
flat
Ambient Air Temperature For Operation
-40-55°C
Product Or Component Type
socket
Product Certifications
CSA || Lloyd's || UL

Description

Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 12 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail & Surface, Color Black, Compatible Relays Harmony(TM) RXM Series, Contact Rating (AC) 12 A @ 250V, Depth 3.25 in, Height 2.4 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
